Meet the newest subcompact class of fighters … the Mahindra 1100 Series. They’re smart, friendly, tough tractors and our heaviest-lifting subcompact ever!

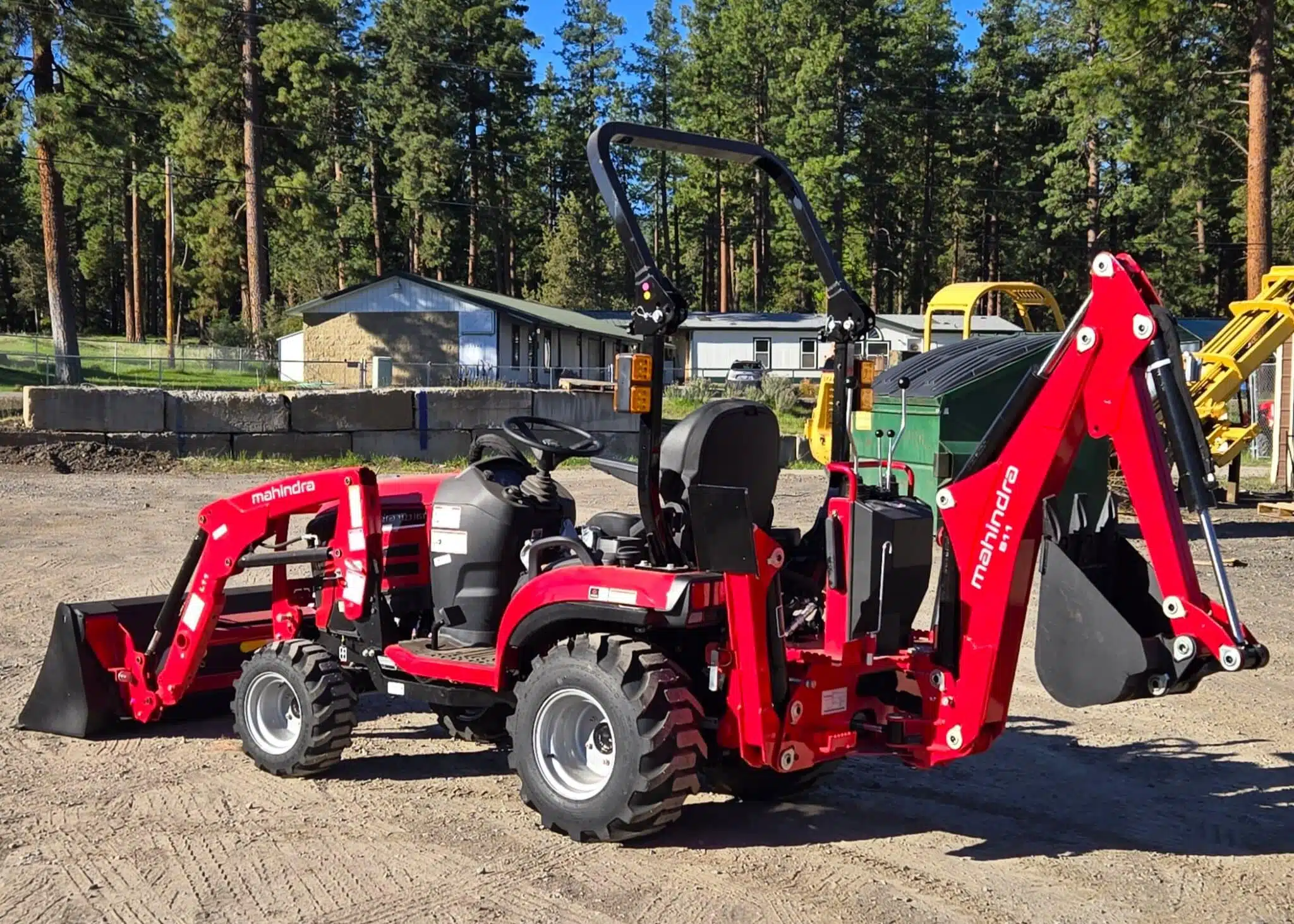

Read on to discover why our Mahindra 1123 HST Tractor/Loader/Backhoe will deliver every day, every time, for the small acreage or estate homeowner.
Phone App Lovers will be pumped by their intelligent Mahindra MyOJA software
First-time operators will smile at Smart Assist and their intuitive cockpits
Weekend warriors will be rocked when testing their mettle. They’re our heaviest-lifting subcompact ever!

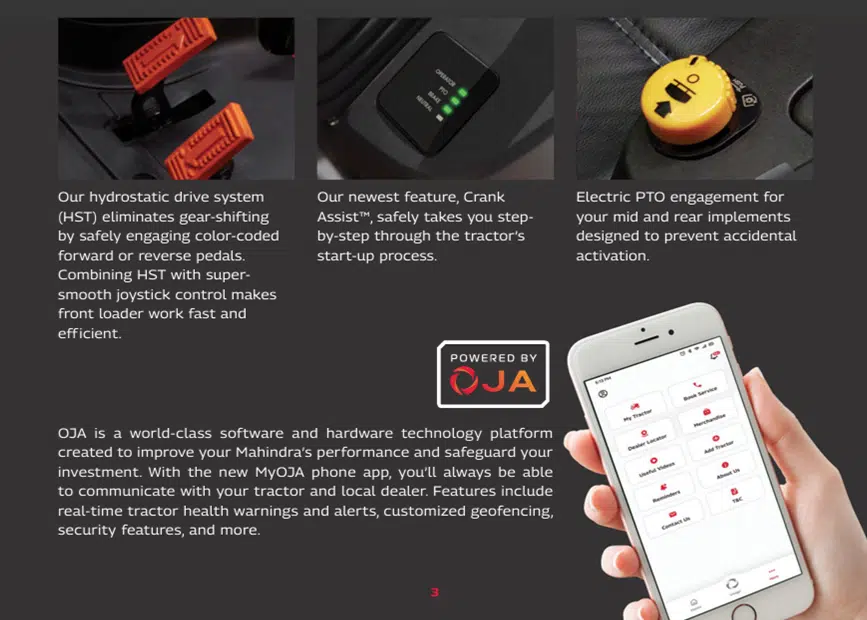

Our hydrostatic drive system (HST) eliminates gear-shifting by safely engaging color-coded forward or reverse pedals
Super smooth joystick control makes front loader work fast and efficient
Our newest feature, Crank Assist™, safely takes you step by-step through the tractor’s start-up process
Electric PTO engagement for your mid and rear implements designed to prevent accidental activation
OJA is a world-class software and hardware technology platform created to improve your Mahindra’s performance and safeguard your investment. With the new MyOJA phone app, you’ll always be able to communicate with your tractor and local dealer. Features include Real-time tractor health warnings and alerts, customized geofencing, security features, and more.
IDEAL USES for the Mahindra 1123 HST Tractor/Loader/Backhoe
Planting a garden
Landscaping projects
Material handling
Trenching
Mowing lawn & pastures
Spreading weed & feed
Fence work
Grading driveways
Clearing snow
POWER
The Mahindra 1100 Series has a formidable engine powering its mid and rear PTOs. Its robust hydraulic pumps command steering, attachment, and simple operations.
Our heaviest-lifting subcompact ever
Powerful 22.9 HP Diesel Engine
No DPF or regen ever!
Optional drive-on, quick attach mid-mower
Optional Mahindra BH11 Backhoe (for open station only)
mComfort seat swivels for operating backhoe
Tilt and telescoping power steering
Folding ROPS for garage parking
Front loader skid-steer couplers for superfast hookups
ADVANCED
Mahindra MyOJAphoneapp connects and empowers the homeowner to their tractor’s diagnostics.
Other 1100 Series Advanced Features Include
Push-button PTO activation for both mid and rear implement work
No-hassle hydrostatic forward & reverse pedals
Buttery joystick for super fast loader work.
EASE OF USE
The Mahindra 1100 Series touts features like Crank Assist™, intuitive controls, tilt power steering, a form-fitting mComfort seat, and a well appointed heated cab. The Mahindra 1100 Series ROPS cab (Rollover Protection Structure) is designed, fabricated, and fitted at our assembly plant. It can be heated quickly and efficiently to provide warmth on extremely cold days. Additionally, the glass-enclosed cab provides a 360- degree view and includes work lights, mirrors, and wipers to deliver an exceptional experience, setting a new class standard. Try sitting on a tractor all day, and then you’ll see why the 1100 series comes standard with power steering and a form-fitting mComfort seat — our most comfy combo yet.
Easy-to-use levers, knobs, and pedals are labeled for easy reference and ergonomically placed for no-hassle use.
Our projector-style headlights offer bright, white lighting for after-dark chores.
Crank Assist™ takes the guesswork out of starting your tractor
Front & Rear Work Lights
Front & Rear Wipers
Turn signals & hazard lights
Rearview mirrors
ROPS cab (Rollover Protection Structure)
Well-placed, intuitive controls are ideal for the first-time owner
Hydrostatic forward & reverse — no need to learn a manual transmission
Type Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Cylinders 3
Engine HP 22.9 hp @ 3000 25.3
Compression Ratio 22.0 – 23.0 to 1
Cylinder Sleeve Parent Bore
Displacement: in3 (cc) 67.2 (1102)
Exhaust System LH, Side Draft
Fuel Tank Capacity: 6.6 Gal.
ELECTRICAL
Battery Capacity 12.6V, 650 CCA
Alternator 12V, 55 A
TRANSMISSION
Type HST – 2 Range
STEERING
Type Hydrostatic Power
BRAKES
Type Single Pedal
HYDRAULIC SYSTEM
Type Open Center, full-live hydraulic with position control
Pump Output: GPM (LPM) 7.6 (28.7)
Loader Lift Capacity: lb (kg) 794 (360)
3-pt Linkage CAT 1 with check chains
3 pt Lift Capacity 24-inch from pin: 771#
Rear Auxiliary Remote Valves Optional Single or dual
PTO
Type Independent Wet Clutch
PTO HP 16.8
Rear PTO RPM @ Engine RPM 540 @ 2837
Optional Mid PTO RPM @ Engine RPM 2500 @ 2837
OPERATING WEIGHT
Total Weight: 1620#
DIMENSIONS
Overall Length: in (mm) 100.4 (2550)
Overall Width: in (mm) 46.3 (1177)
Overall Height OS: in (mm) 86.6 (2200)
Overall Height Cab: in (mm) 80.5 (2044)
Wheelbase: in (mm) 55.1 (1400)
TIRES SIZES & OPTIONS
Industrial (Front / Rear) 18 x 8.5 – 10 / 26 x 12 – 12
Optional
Turf (Front / Rear) 18 x 8.5 – 10 / 26 x 12 – 12
Note: Specifications and design subject to change without notice.
Attachment Specifications for the Mahindra 1123 HST Tractor/Loader/Backhoe
LOADER L11
Max Lift Height 68″
Digging Depth 3″
Lifting Capacity 794#
Full Height At Pivot Pin 794″
Breakout Force 1433#
Shipping Weight 406#
Bucket Width 50″
Bucket Capacity – Heaped (ft3) 6.5
Bucket Capacity – Struck (ft3) 5.05
BACKHOE B11 (open station only)
Maximum Digging Depth 76″
Digging Depth 2 ft. Flat Bottom 75″
Digging Force – Bucket 2304#
Digging Force – Dipper 1553#
Shipping Weight 708#
MOWER M1154 / M1160 Attachment Available At Additional Cost
Type Side Discharge Side Discharge
Cutting Width (in) 54″ 60″
Cutting Height Range (in) 1 to 4 1 to 4
Transport Height (in) 5 5
Lift Linkage Type 3 Point Hitch Lower Links 3 Point Hitch Lower Links
Height Adjustment 3 Point Hitch Position Control Lever 3 Point Hitch Position Control Lever
Number of Blades 3 3
Blade Tip Speed (fpm) 18040 ft/min 18032 ft/min
Weight (lb) 320 330
Adjustable Anti-Scalp Wheels 4 4
Ground Clearance: in (mm) 6.7 (169)
Turning Radius with Brakes: ft (m) 7.2 (2.2)
Discover more about the new Mahindra OJA Powered Compact Tractors
Introducing Mahindra OJA – a revolutionary platform ignited by this very vital energy. Derived from the Sanskrit word ‘OJAS’ meaning ENERGY, OJA stands as the ultimate powerhouse. It’s here to reshape the agricultural landscape, bringing forth connected intelligence, productivity, and automation technologies that change the game. This is the future of farming, let’s experience the transformation firsthand.
MyOJA App
The MyOJA App offers a range of features that provide Mahindra’s 1100 and 2100 series tractor users with convenient access to essential information about their tractors. With this app, users can remotely monitor their tractor’s location and performance, receiving timely alerts for critical issues. The app also allows users to define geofences, enabling them to receive alerts when the tractor moves outside specified areas. Additionally, users can easily track their tractor’s ground coverage and view its usage history.
