Meet the newest subcompact class of fighters … the Mahindra 1100 Series. They’re smart, friendly, tough tractors and our heaviest-lifting subcompact ever!

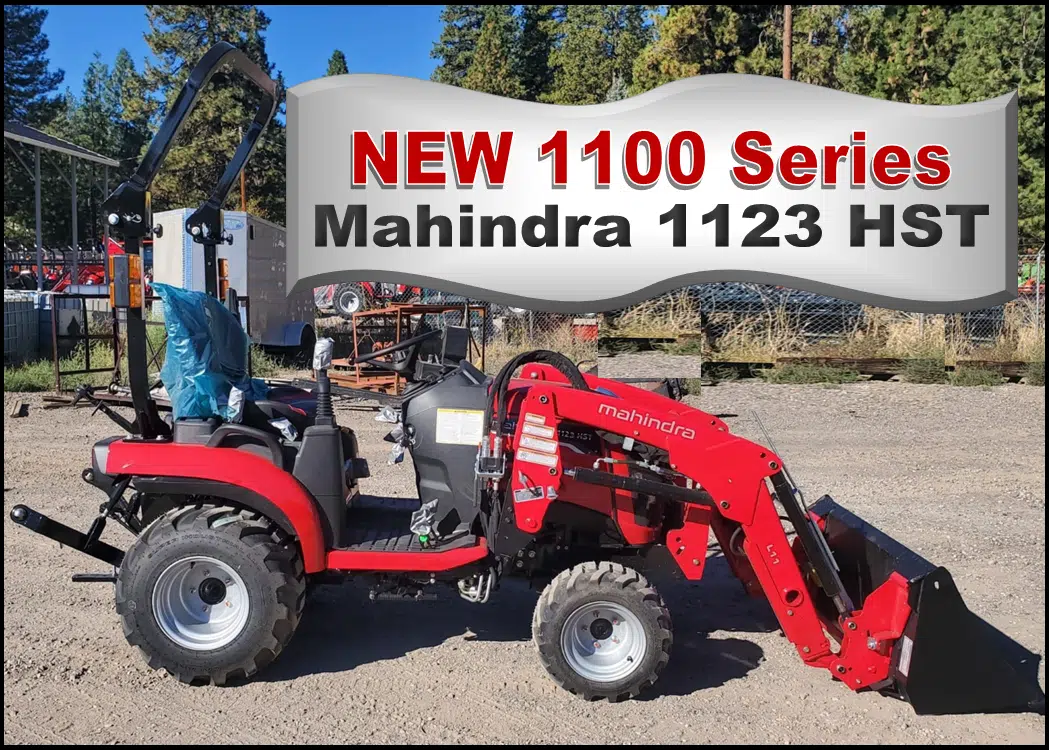

Read on to discover why our Mahindra 1123 HST Tractor/Loader will deliver every day, every time, for the small acreage or estate homeowner.
Phone App Lovers will be pumped by their intelligent Mahindra MyOJA software
First-time operators will smile at Smart Assist and their intuitive cockpits
Weekend warriors will be rocked when testing their mettle. They’re our heaviest-lifting subcompact ever!
Our hydrostatic drive system (HST) eliminates gear-shifting by safely engaging color-coded forward or reverse pedals
Super smooth joystick control makes front loader work fast and efficient
Our newest feature, Crank Assist™, safely takes you step by-step through the tractor’s start-up process
Electric PTO engagement for your mid and rear implements designed to prevent accidental activation
OJA is a world-class software and hardware technology platform created to improve your Mahindra’s performance and safeguard your investment. With the new MyOJA phone app, you’ll always be able to communicate with your tractor and local dealer. Features include Real-time tractor health warnings and alerts, customized geofencing, security features, and more.
IDEAL USES for the Mahindra 1123 HST Tractor/Loader
The Mahindra 1123 HST Tractor/Loader has a formidable engine powering its mid and rear PTOs. Its robust hydraulic pumps command steering, attachment, and simple operations.
Our heaviest-lifting subcompact ever
Powerful 22.9 HP Diesel Engine
No DPF or regen ever!
Optional drive-on, quick attach mid-mower
Optional Mahindra BH11 Backhoe (for open station only)
mComfort seat swivels for operating optional backhoe
Tilt and telescoping power steering
Folding ROPS for garage parking
Front loader skid-steer couplers for superfast hookups
ADVANCED
Mahindra MyOJAphoneapp connects and empowers the homeowner to their tractor’s diagnostics.
Other 1100 Series Advanced Features Include
Push-button PTO activation for both mid and rear implement work
No-hassle hydrostatic forward & reverse pedals
Buttery joystick for super fast loader work.
EASE OF USE
The Mahindra 1100 Series touts features like Crank Assist™, intuitive controls, tilt power steering, a form-fitting mComfort seat, and a well appointed heated cab. The Mahindra 1100 Series ROPS cab (Rollover Protection Structure) is designed, fabricated, and fitted at our assembly plant. The Mahindra 1123 HST Tractor/Loader can be heated quickly and efficiently to provide warmth on extremely cold days. Additionally, the glass-enclosed cab provides a 360- degree view and includes work lights, mirrors, and wipers to deliver an exceptional experience, setting a new class standard. Try sitting on a tractor all day, and then you’ll see why the 1100 series comes standard with power steering and a form-fitting mComfort seat — our most comfy combo yet.
Easy-to-use levers, knobs, and pedals are labeled for easy reference and ergonomically placed for no-hassle use.
Our projector-style headlights offer bright, white lighting for after-dark chores.
Crank Assist™ takes the guesswork out of starting your tractor
Front & Rear Work Lights
Front & Rear Wipers
Turn signals & hazard lights
Rearview mirrors
ROPS cab (Rollover Protection Structure)
Well-placed, intuitive controls are ideal for the first-time owner
Hydrostatic forward & reverse — no need to learn a manual transmission
NO DPF (DIESEL PARTICULATE FILTER) MEANS:
You will have “No Regen” downtime
No wasted warranty hours
Fewer parts to replace
No wasted fuel
Quieter operation
Mahindra 1123 HST Tractor/Loader Specifications
ENGINE 1123
Brand & Model Mitsubishi MVL3E3
Type Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Cylinders 3
Engine HP 22.9 hp @ 3000 25.3
Compression Ratio 22.0 – 23.0 to 1
Cylinder Sleeve Parent Bore
Displacement: in3 (cc) 67.2 (1102)
Exhaust System LH, Side Draft
Fuel Tank Capacity: 6.6 Gal.
ELECTRICAL
Battery Capacity 12.6V, 650 CCA
Alternator 12V, 55 A
TRANSMISSION
Type HST – 2 Range
STEERING
Type Hydrostatic Power
BRAKES
Type Single Pedal
HYDRAULIC SYSTEM
Type Open Center, full-live hydraulic with position control
Pump Output: GPM (LPM) 7.6 (28.7)
Loader Lift Capacity: lb (kg) 794 (360)
3-pt Linkage CAT 1 with check chains
3 pt Lift Capacity 24-inch from pin: 771#
Rear Auxiliary Remote Valves Optional Single or dual
PTO
Type Independent Wet Clutch
PTO HP 16.8
Rear PTO RPM @ Engine RPM 540 @ 2837
Optional Mid PTO RPM @ Engine RPM 2500 @ 2837
OPERATING WEIGHT
Total Weight: 1620#
DIMENSIONS
Overall Length: in (mm) 100.4 (2550)
Overall Width: in (mm) 46.3 (1177)
Overall Height OS: in (mm) 86.6 (2200)
Overall Height Cab: in (mm) 80.5 (2044)
Wheelbase: in (mm) 55.1 (1400)
TIRES SIZES & OPTIONS
Industrial (Front / Rear) 18 x 8.5 – 10 / 26 x 12 – 12
Optional
Turf (Front / Rear) 18 x 8.5 – 10 / 26 x 12 – 12
Note: Specifications and design subject to change without notice.
Attachment Specifications for the Mahindra 1123 HST Tractor/Loader
Lift Linkage Type 3 Point Hitch Lower Links 3 Point Hitch Lower Links
Height Adjustment 3 Point Hitch Position Control Lever 3 Point Hitch Position Control Lever
Number of Blades 3 3
Blade Tip Speed (fpm) 18040 ft/min 18032 ft/min
Weight (lb) 320 330
Adjustable Anti-Scalp Wheels 4 4
Ground Clearance: in (mm) 6.7 (169)
Turning Radius with Brakes: ft (m) 7.2 (2.2)
Discover more about the new Mahindra OJA Powered Compact Tractors
Introducing Mahindra OJA – a revolutionary platform ignited by this very vital energy. Derived from the Sanskrit word ‘OJAS’ meaning ENERGY, OJA stands as the ultimate powerhouse. It’s here to reshape the agricultural landscape, bringing forth connected intelligence, productivity, and automation technologies that change the game. This is the future of farming, let’s experience the transformation firsthand.
MyOJA App
The MyOJA App offers a range of features that provide Mahindra’s 1100 and 2100 series tractor users with convenient access to essential information about their tractors. With this app, users can remotely monitor their tractor’s location and performance, receiving timely alerts for critical issues. The app also allows users to define geofences, enabling them to receive alerts when the tractor moves outside specified areas. Additionally, users can easily track their tractor’s ground coverage and view its usage history.
The included L11 skid-steer front end loader is rated to lift 794 pounds. It has a maximum lift height of 68 inches, a 50-inch bucket, and 1,433 pounds of breakout force. The loader uses skid-steer couplers for faster attachment hookups.
What engine and transmission does the Mahindra 1123 HST have?
The Mahindra 1123 HST has a 22.9 HP, three-cylinder Mitsubishi diesel engine and a two-range hydrostatic transmission. It has no DPF, so it does not require regen downtime. Color-coded hydrostatic forward and reverse pedals eliminate manual gear shifting.
What is the 3-point hitch lift capacity on the Mahindra 1123 HST?
The Mahindra 1123 HST has a Category 1 three-point hitch rated to lift 771 pounds at 24 inches from the pin. It also has an independent wet-clutch PTO with 16.8 PTO horsepower and 540 RPM rear PTO operation at 2,837 engine RPM.
Can I add a backhoe or mower to the Mahindra 1123 HST?
Yes, an optional Mahindra B11 backhoe and optional M1154 54-inch or M1160 60-inch mower are available at additional cost. The B11 backhoe is for open-station models only and has a 76-inch maximum digging depth. The tractor also supports mid and rear PTO implements.
Does the Mahindra 1123 HST have four-wheel drive and app connectivity?
Yes, the Mahindra 1123 HST comes with four-wheel drive and Mahindra MyOJA connectivity. The MyOJA app can provide live tractor location, diesel-level information, coverage and usage history, geofence alerts, critical and service alerts, dealer location, and service booking.
