Refurbished Komatsu PC10-7 Excavator

Home/Excavators/Refurbished Komatsu PC10-7 Excavator
Print Product Info

Refurbished Komatsu PC10-7 Excavator

Call for price
(866) 363-8193

Refurbished Komatsu PC10-7 Excavator

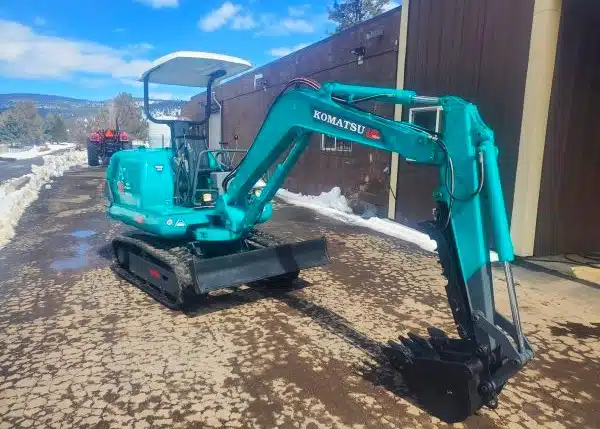

Photos coming soon (Excavators On Order)

The PC10-7 Excavators were produced in 1989-1996. This is a refurbished model

PC10-7 Excavator Features
  • Rebuilt Diesel Engine
  • New Track
  • Paint
  • New Seat
  • Hydraulic Thumb
  • 20″ Bucket  (500 mm  or 19.69″)

Call Keno Tractors toll free at 866-363-8193 for Details!

Need delivery or distance shipping?

Please see our Delivery Options here.

Description

Refurbished Komatsu PC10-7 Excavator

The PC10-7 Excavators were produced in 1989-1996. This is a refurbished model.

Specifications for the Refurbished Komatsu PC10-7 Excavator:

Operating Weight 2250 kg (4960.4 #)

Standard Bucket Capacity 0.06/ m3

Standard Bucket Width 500 mm (19.69″)

Dimensions

Overall length (A) 4675 mm (184.05″)

Rear end radius (B) 1285 mm (50.59″)

Std. shoe width (C) 250 mm (9.84″)

Track length (D) 1350 mm (53.15″)

UC width (E) 1330 mm (52.36″)

Track gauge (F) 1080 mm (42.52″)

Overall height (G) 2435 mm (95.87″)

Overall width (H) 1450 mm (57.09″)

Ground clearance (I) 295 mm (11.61″)

Engine

Diesel

Manufacturer KOM

Model 3D78N

Rated output 15.4{21}/2500 kW(PS)/rpm

Displacement 1.2 ltr

Performance

Bucket digging force 16.7/ kN

Max digging depth 2350 mm (92.52″)

Max digging depth(P) 1870 mm (73.62″)

Max digging reach 4600 mm (181.10″)

Max dumping clearance 3300 mm (129.92″)

Max digging height 4570 mm (179.92″)

Min swing radius 1450,1080(90SW) mm

Travel speed 2.3 km/h

Swing speed 8.6 min-1

Equipment Structure

Blade width x height:  1450×307 mm (57.09″ x 12.09″)

Std. shoe type:  STS

Capacity

Fuel tank:  35 liter (9.24602 Ga)

See our other Excavators here.
