Description

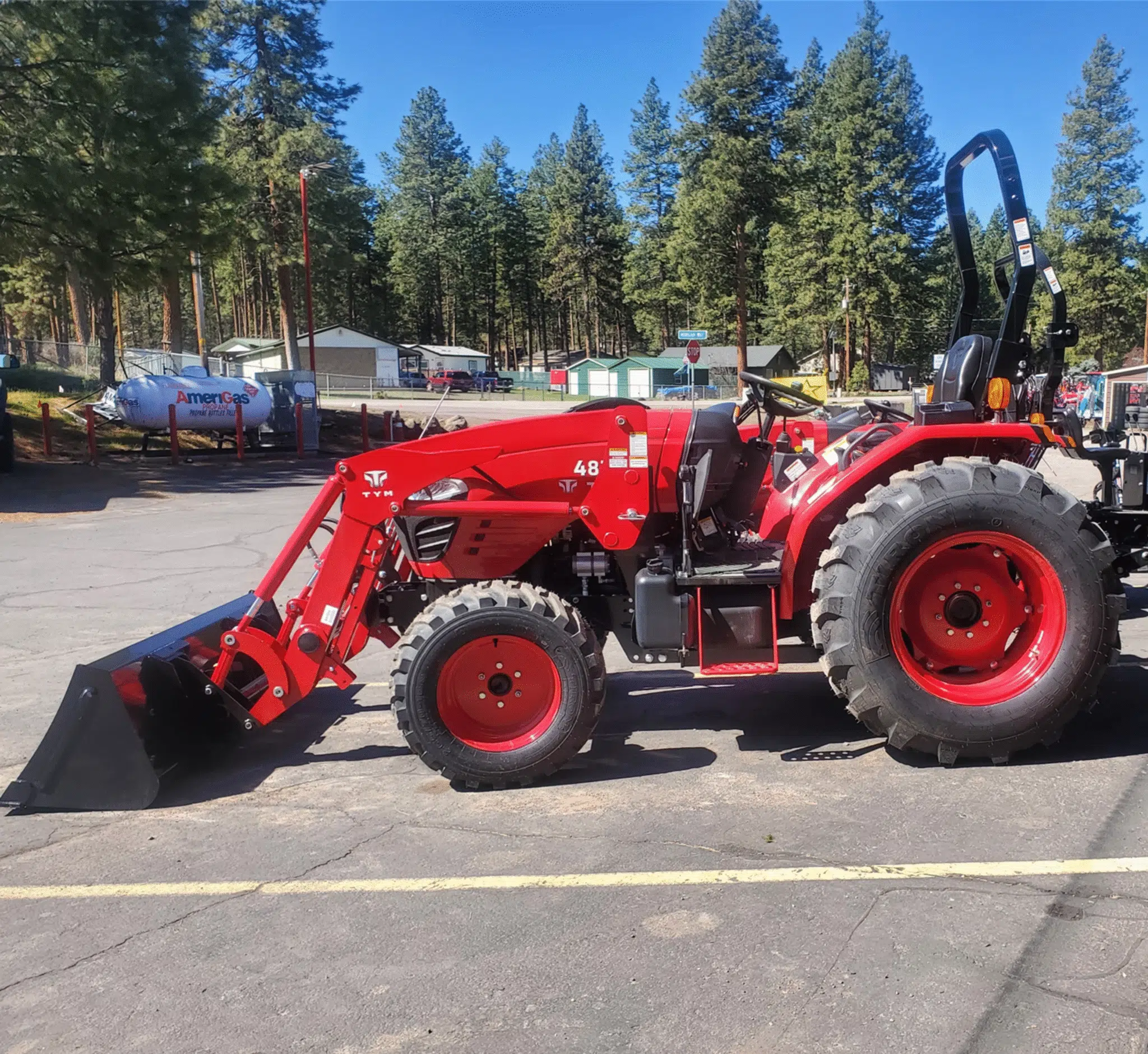

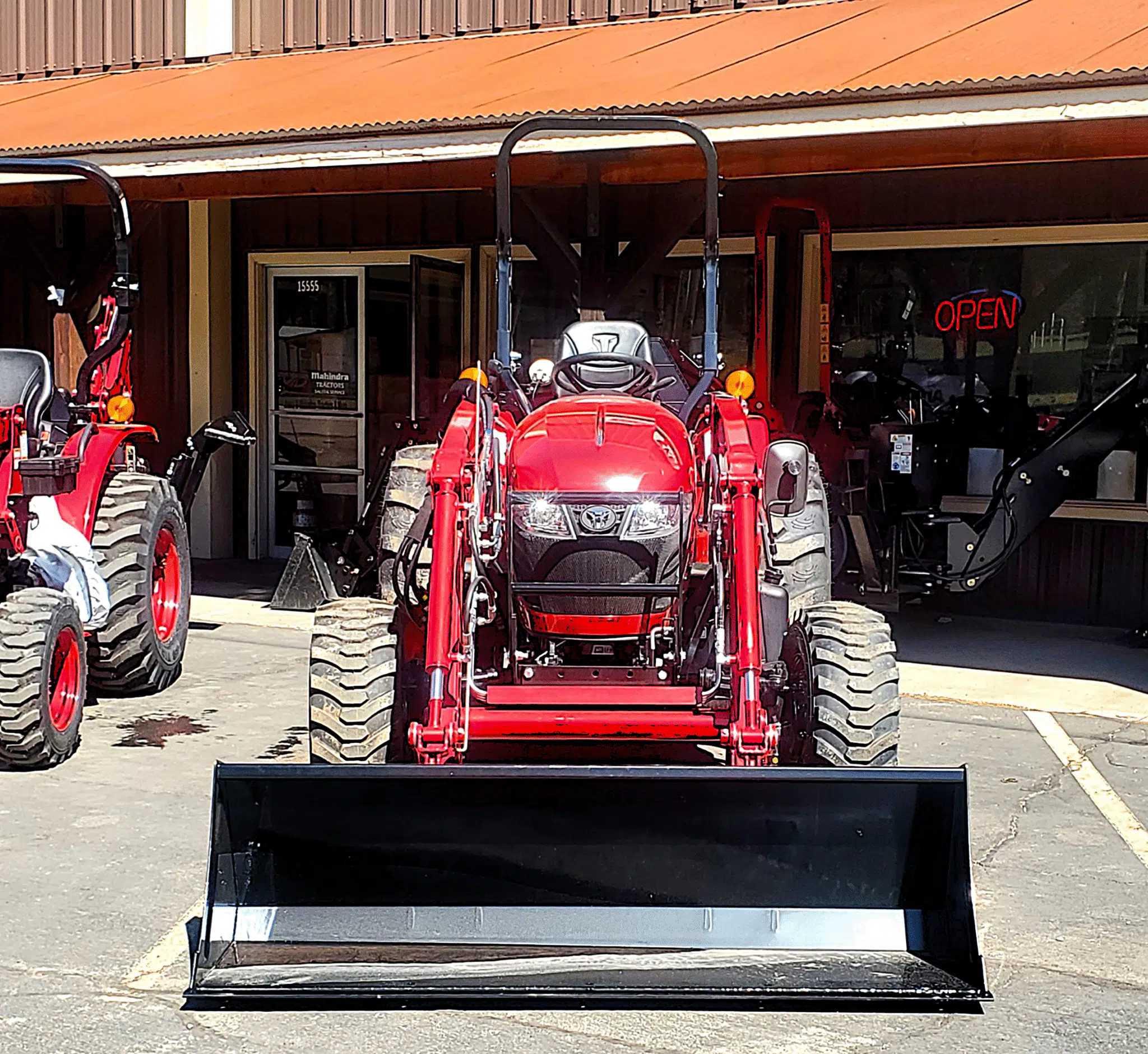

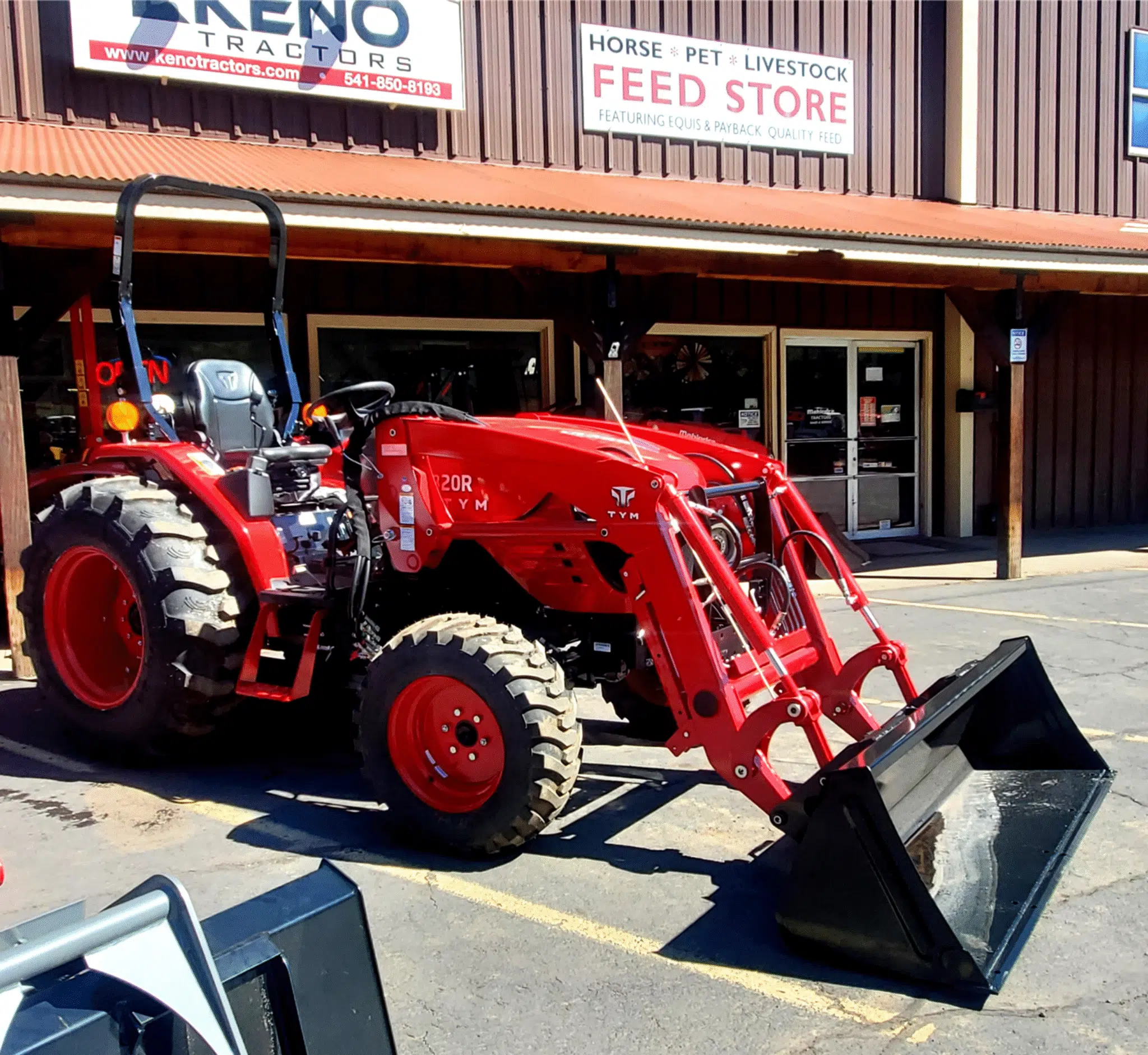

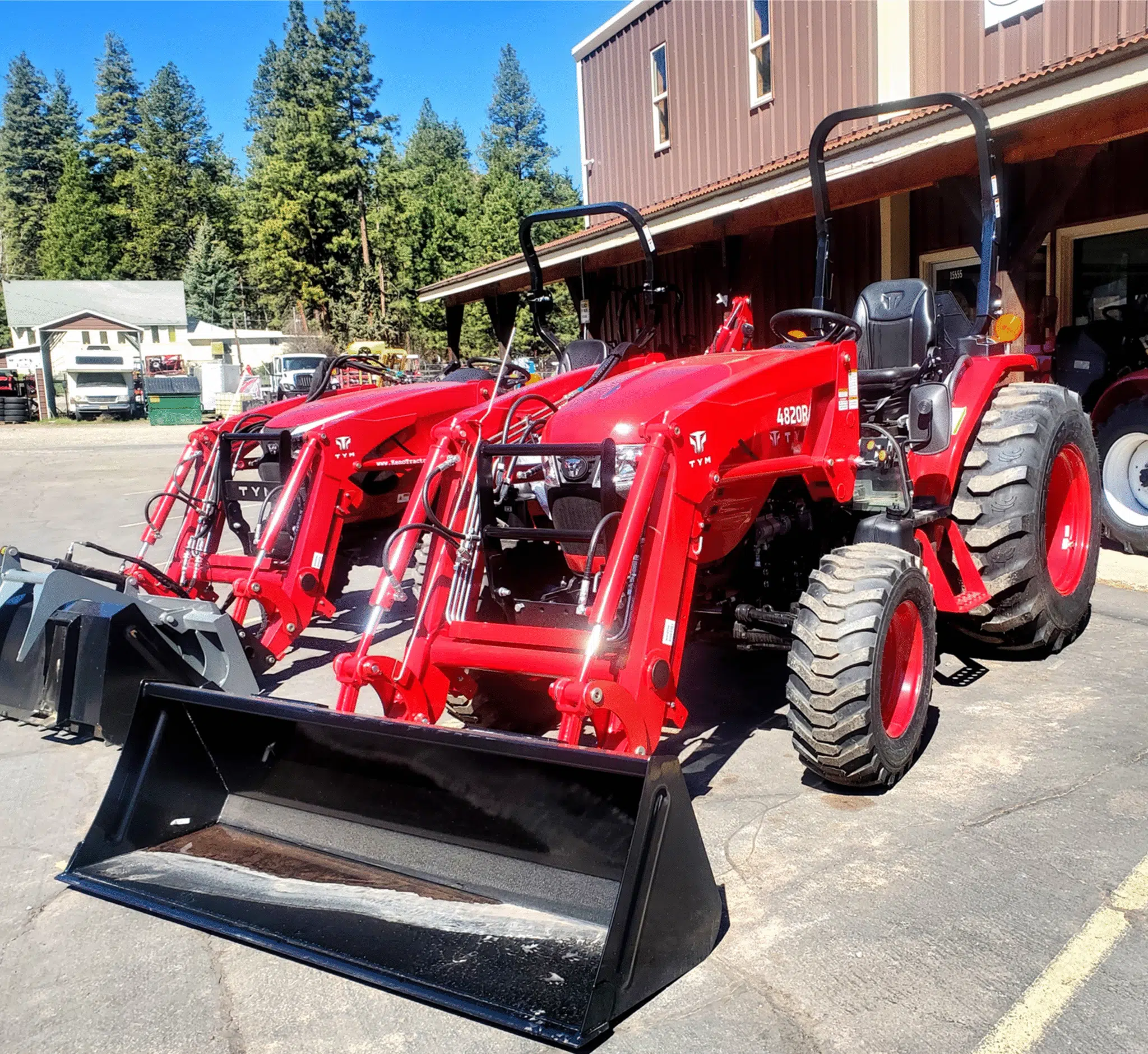

TYM 4820R Tractor/Loader
Information Provided by TYM – 4820 Product Brochure
- Compact Tractor
- Engine power 48 hp
- Hitch lift capacity 1500#
- BL200 Front End Loader – Lift capacity 2701#
A high-performance compact tractor built to take on challenges of all sizes
High performance meets high efficiency in this customizable tractor. The 4820 can be configured as you see fit keep you productive and to maintain your comfort throughout tasks of varying intensities.
Powerful features to drive tractor performance
With a powerful hydraulic system and ergonomic controls, this Series 3 tractor has the capability to complete a variety of jobs, whether big or small. The comfortable driver’s seat is equipped with ergonomically designed controls to give operators every advantage.
Eco-Friendly TYM Tier-IV engine
Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.
Differential Lock System & Low Turning Angle
The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments.
52˚ turning angle makes operation in narrow areas much easier.
Tilt Steering Wheel
The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.
PTO ON/OFF Switch
Safety is always first. The PTO switch ensures the safe operation of all tractor attachments.
Water-Separating Fuel Filter
The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine start ability and preventing damage to the machine.
Optional tires for versatile working conditions
In addition to standard agricultural tires, industrial, turf tires are also available for versatile working conditions.
Engine
- Engine manufacturer TYM T2300N2
- Type Natural Aspiration
- Gross engine power 48 hp
- PTO power 38.4 hp | 28.6 kW
- Rated engine speed 2600 rpm
- No. of cylinders 4
- Displacement 139.5 cu. in. | 2286 cc
- Air cleaner Dry Element
- Alternator 12V, 50A
- Fuel system IDI
Powertrain
- Transmission type Synchromesh
- No. of speeds 16Fx16R
- Max. traveling speed 16 mph
- Brakes Wet, Multi-disc
- Steering Hydrostatic
- Clutch Dry Single Type (N/A)
Capacities
- Fuel tank 11.8 gal
- Coolant 6.2 qt
- Crankcase 4.8 qt
- Transmission/Hydraulics system 10.3 gal | 39 L
- Front axle 6.8 qt
PTO
- PTO type Independent
- PTO control Wet, Multi-disc
- PTO rear 540 rpm
Hydraulic System
- Pump type: Dual gear pump
- Implement Flow 11.4 gpm
- Steering Flow: 5.2 gpm
- Total Flow: 16.5 gpm

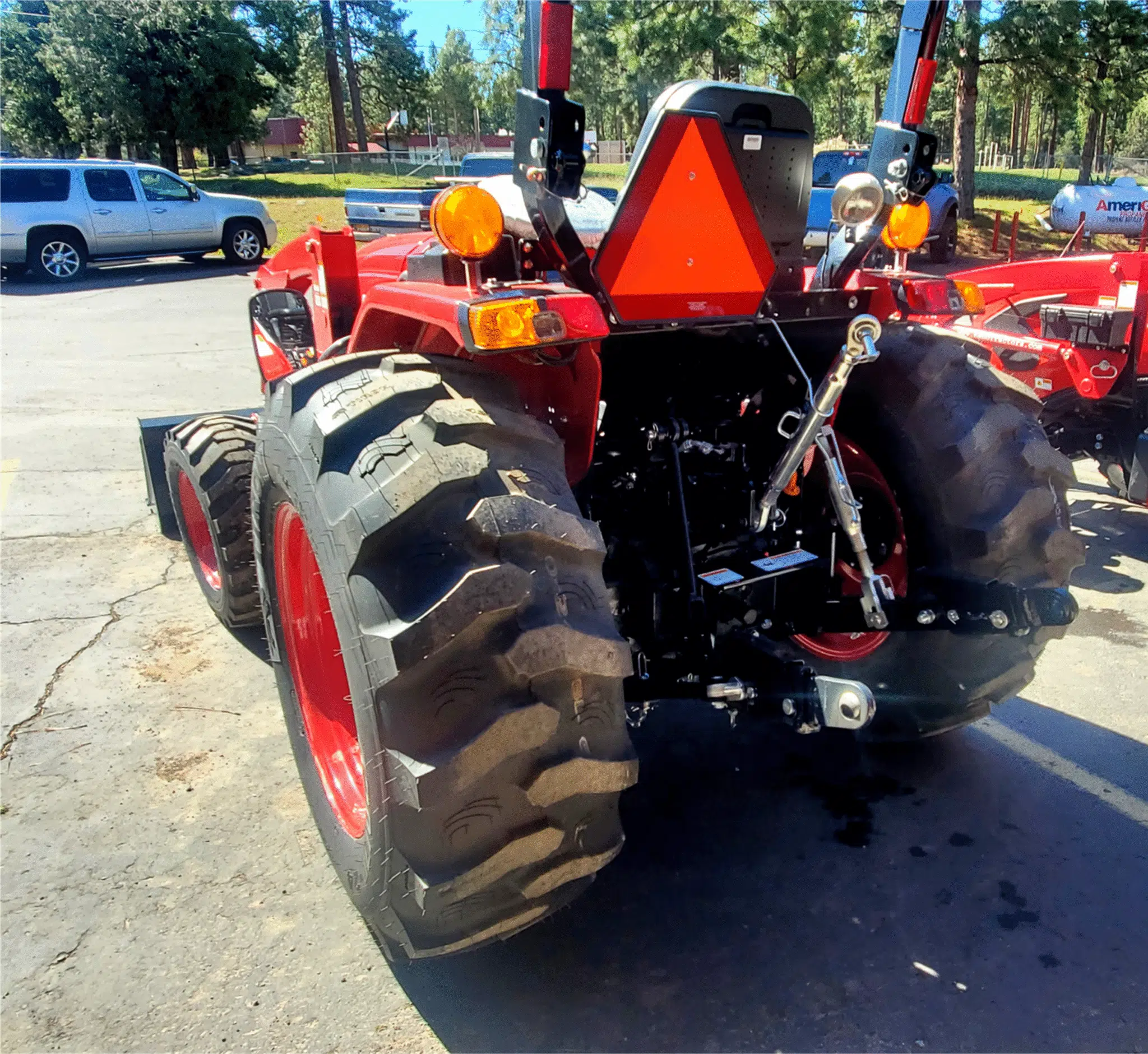

- Category 1 , 3-point hitch
- Hitch lift capacity 3306 lb | 1500 kg
- Hitch lift capacity at 24 inches behind link ends 2425 lb
- Lift control type Position
- No. of standard remote valves Optional (Up to 4)
Dimensions & Weights
- Overall length with 3-point hitch 127.4 in.
- Overall width 64.9 in.
- Wheelbase 71.1 in.
- Height to top of ROPS 98.4 in.
- Min. ground clearance 15.5 in.
- Min. turn radius with brakes 97.2 in
- Min. turn radius without brakes 128.7 in
- Weight with ROPS 3831 lb | 1737.7 kg
Standard Tires Available
- R1 Agricultural – Front 9.5-16
- R1 Agricultural – Rear 13.6-26
- R3 Turf – Front – 1.27×8.5-15
- R3 Turf – Rear – 13.6-26
- R4 Industrial – Front 12-16.5
- R4 Industrial – Rear 17.5L24
BL200 Front-End Loader
The BL front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, this front-end loader can help you get your tasks done more efficiently.
- Lift height 106.6 in. / 2709 mm
- Lift capacity 2701 lb / 1225 kgf
- Bucket capacity 9.5 cu. ft / 0.27 cu. m
CAPACITIES & REACH
- Lift height 106.6 in. | 2709 mm
- Max. lift height under level bucket 98.1 in. | 2491 mm
- Clearance with bucket dumped 78.2 in. | 1987 mm
- Reach at maximum lift height 14.6 in. | 371 mm
- Max. dump angle 58°
- Reach with bucket on ground 69.2 in. | 1758 mm
- Max. rollback angle 35°
- Digging depth 3.1 in. | 78 mm
- Lift capacity 2701 lb | 1225 kgf
- Breakout force at ground level, pivot points 3660 lb | 1660 kgf
- Bucket rollback force at ground line 2844 lb | 1290 kgf
- Bucket capacity 9.5 cu. ft | 0.27 cu. m
- Relief valve setting (Loader control valve) 2532 psi | 178 kg/sq. cm
- Compatible Bucket Sizes
DIMENSIONS & WEIGHTS
- Overall height in carry position 50.9 in. | 1293 mm
- Depth of Attachment (to the back of the inner shell) 20.9 in. | 530 mm
- Height of Attachment 20.9 in. | 530 mm
- Length of Attachment (to pivot point) 28.2 in. | 716 mm
- Weight of boom & quick attach mechanism (1) 521 lb | 236 kg
- Weight of mounting frame (2) 284 lb | 129 kg
- Weight of bucket (3) 269 lb | 122 kg
- Loader total weight (1+2+3) 1075 lb | 487 kg
- Attachment used for specification 72 in. | 1830 mm
CYCLE TIMES
- Boom raising time 4.3 sec
- Boom lowering time 2.8 sec
- Bucket rollback time 2.9 sec
- Bucket dumping time 4.2 sec
Add a BH200 Backhoe @ additional cost. Call for package pricing.
The BH complements the power and strength of the Series 3 compact tractors, enhancing performance and versatility without compromising safety.
- Digging depth 91.2 in. / 2317 mm
- Loading height 90 in. / 2286 mm
- Backhoe reach 123.6 in. / 3140 mm
