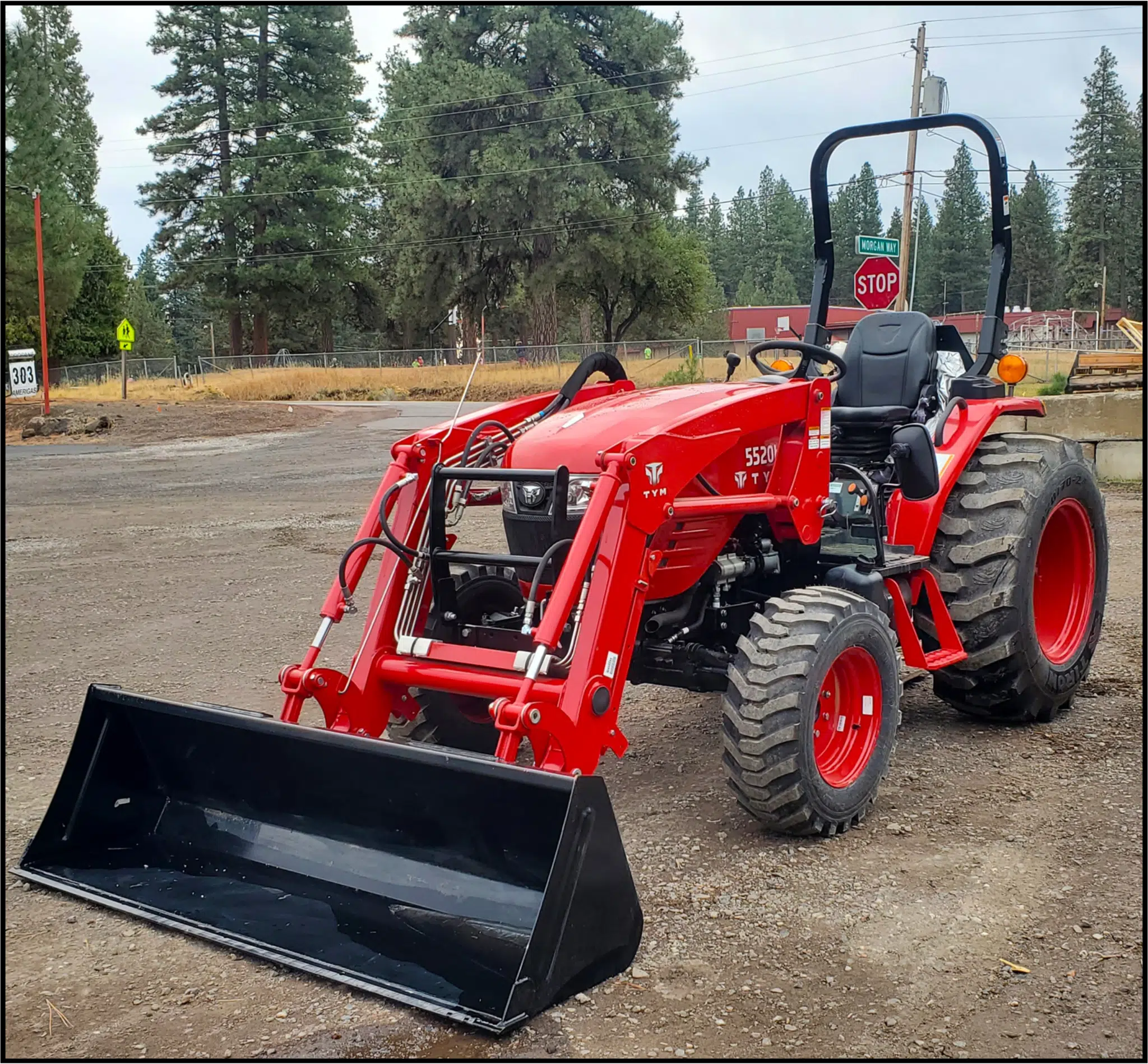

TYM 5520H Tractor Package
- TYM 5520H Tractor
- TYM BL200 Loader
- 7′ Rear Blade (Titan)
- 48″ Quick Attach Forks (Terra Force)
Bucket Cutting Edge available at additional cost
Need Financing? Get Pre-Approval Here
TYM 5520H Tractor Package
$34,490.00
Description
TYM 5520H Tractor Package
- TYM 5520H Tractor
- TYM BL200 Loader
- 7′ Rear Blade (Titan)
- 48″ Quick Attach Forks (Terra Force)
TYM 5520H Tractor/Loader Features
Information provided by the 5520-product-brochure
- Hydrostat Transmission – 4 Range
- 4 wd
- 55 hp Turbo Charged Diesel Engine. Vertical 4 Cycle, Water Cooled, EPA Tier Certified
- PTO Independent (6 Spline Shaft) 540 RPM
- 3 Pt Hitch (Cat. 1/Telescopic lower link/ telescopic stabilizers
- 3,306# Hitch lift capacity
BL200 Front End Loader 2,701# Lift
- 2,701# Lift capacity at pivot point (max. height)
- Lift height: 106″
- 72″ Bucket Width
- Bucket Capacity: 9.5 cu. ft.
A high-performance compact tractor built to take on challenges of all sizes
High performance meets high efficiency in this customizable Series 3 tractor. The 5520 can be configured as you see fit to drive productivity and it’s equipped with the features designed to maintain your comfort throughout tasks of varying intensities.
Good clearance from the ground and overhead allows you to take on uneven terrain easily, whether in a barn, under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities, and foldable ROPS, this tractor has the capabilities to perform light-to medium-duty jobs, all year round.
The TYM 5520H Tractor has the 4 Speed Transfer Case!
Other Tractors have 2 or 3 speeds. But the TYM 5520 Tractor has a “4 speed transfer case“. This means more variable speeds for a variety of applications for you! 4 Speed Info
The Strongest, Toughest, Most Powerful Tractor in its Horsepower Range
Eco-friendly TYM Tier 4 engine
Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.
Tilt steering wheel
The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.
PTO on/off switch
Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.
Differential lock systems & low turning angle
The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.
Water-separating fuel filter
The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.
Optional tires for various working conditions
In addition to standard agricultural tires, industrial and turf tires are also available for versatile working conditions.
Powerful features to drive tractor performance
With a powerful hydraulic system and ergonomic controls, this Series 3 tractor has the capability to complete a variety of jobs. The comfortable driver’s seat is equipped with ergonomically designed controls to give operators every advantage.
Front Axle
Tight turn front axle, with a lock out angle of 62 degrees with a 10 degree camber. Most tractors of this size will only lock out at 56 degrees without any camber change, making the TYM 5520R units one of the tightest turning tractors in the industry.
Hydrostatic Steering
Allows more control if obstacles are hit with the tire, no mechanical parts to wear out. All large horse power tractors use hydrostatic steering, only the lower price tractors from China, Japan and India use mechanical power steering.
Dual Hydraulic Pumps
Much smoother operation of the front end loader and the hydrostatic steering-each has its own dedicated pumps. Most of economy tractor models use just one pump, which is cheaper to produce.
Fully Synchronized Transmission And Shuttle
This transmission is much more expensive to produce but most importantly it allows the operator to shift on the go without bringing the tractor to a complete stop to change gears.
Cast Iron Rear End And Transmission Housings
It does NO good to have horsepower and not be able to transmit the power to the rear wheels. Cast iron is the best and strongest material however it is more expensive to produce.
Metal Hood & Fenders With Powder Coat Paint Finish
One piece metal hood raised by dual gas struts secured with a positive lock latch with cup holders mounted on fender. Powder coat finish prevents UV damage to the paint bringing longevity to our paint. Unlike fiberglass or plastic fenders and hoods, we use STEEL which will not crack in cold climates.
Wet Disc Brakes
All of the top manufacturers use wet disc brakes; only the economy models use a dry disc or drum brake. The advantage of a wet disc brake is very simple, it is in a protected environment and the brake discs are running in hydraulic fluid.
Independent PTO
The most expensive and most sought after PTO function is independent. All of the larger horse power utility tractors use independent PTO. Independent PTO gives the operator much more control over his PTO function, plus it reduces the chance of the operator burning out his clutch because he no longer needs to engage the clutch pedal to control his PTO function. However, we went the extra mile and for those customers who want to stop the PTO with the clutch, they can do so by switching to the link position on the tractor’s PTO function switch.
Deluxe Seat
The seat is fully adjustable from every angle. This comfortable seat has six positions for the operator’s convenience.
Specifications for the BL200 Loader
The BL front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, this front-end loader can help you get your tasks done more efficiently.
- Lift height: 106″
- Lift capacity at pivot point (max. height): 2,701#
- 72″ Bucket Width
- Bucket Capacity: 9.5 cu. ft.
Capacities and Reach
- Lift height: 106.6″
- Max. lift height under level bucket: 98.1″
- Clearance with bucket dumped: 78.2″
- Reach at maximum lift height: 14.6″
- Max. dump angle: 58 degrees
- Reach with bucket on ground: 69.2″
- Max. rollback angle: 35 degrees
- Digging depth: 3.1″
- Lift capacity at pivot point (max. height): 2701#
- Breakout force at ground level, pivot pins: 3660#
- Bucket rollback force at ground line: 2844#
- Bucket capacity: 9.5 cu. ft.
- Relief Valve Setting: 2532 psi(Loader Control Valve)
- Other Compatible Bucket Sizes: 66″ Front End Loader Bucket
Dimensions & Weights
- Overall Height in Carry Position 50.9″
- Depth of Attachment (to the back of the inner shell)20.9″
- Height of Attachment 20.9″
- Length of Attachment (to pivot pin) 28.2″
- Weight of boom & Quick attach mechanism (1) 521#
- Weight of Mounting Fram (2) 284#
- Weight of Bucket (3): 269#
- Loader Total Weight 1+2+3: 1075#
- Lift Cylinder 22×1.2″
- Bucket Cylinder 20×1.2″
- Attachment used for Specification 72″
Cycle Times
- Boom Raising Time 4.3 sec
- Boom Lowering Time 2.8 Sec
- Bucket Rollback Time 2.9 Sec
- Bucket Dumping Time 4.2 Sec
