TYM T224H Tractor/Loader/Backhoe

Home/New Tractors, Tractors, TYM Tractors/TYM T224H Tractor/Loader/Backhoe
Print Product Info

TYM T224H Tractor/Loader/Backhoe


Special TYM T224H Tractor/Loader/Backhoe

Ask about TYM Special Financing!

The Smallest and Most Maneuverable of the TYM line. This Series 1 will perform the tasks of a full-size tractor while enjoying the maneuverability of a ride-on mower. The T224H is the essential TYM sub-compact, serving as an indispensable groundskeeper for every property owner.

  • 21.5 HP Diesel
  • Hitch lift capacity: 1100#
  • Ideal for landscaping, arable farming, cleaning, livestock & poultry
  • PTO lever for mid-and rear rpm
  • 2-range hydrostatic transmission (HST)
  • Safety seat sensor
  • Throttle lever
  • PTO on/off switch
  • Dial adjustment for mower height (optional mower at additional cost)
  • TYM TX22h Front End Loader (Standard Bucket: 48″ Pin On)
  • TYM TB50 Backhoe

Mower at additional cost. Call for pricing. See all compatible attachments here.

See TYM Warranty Information Here
Please see our Delivery Options here

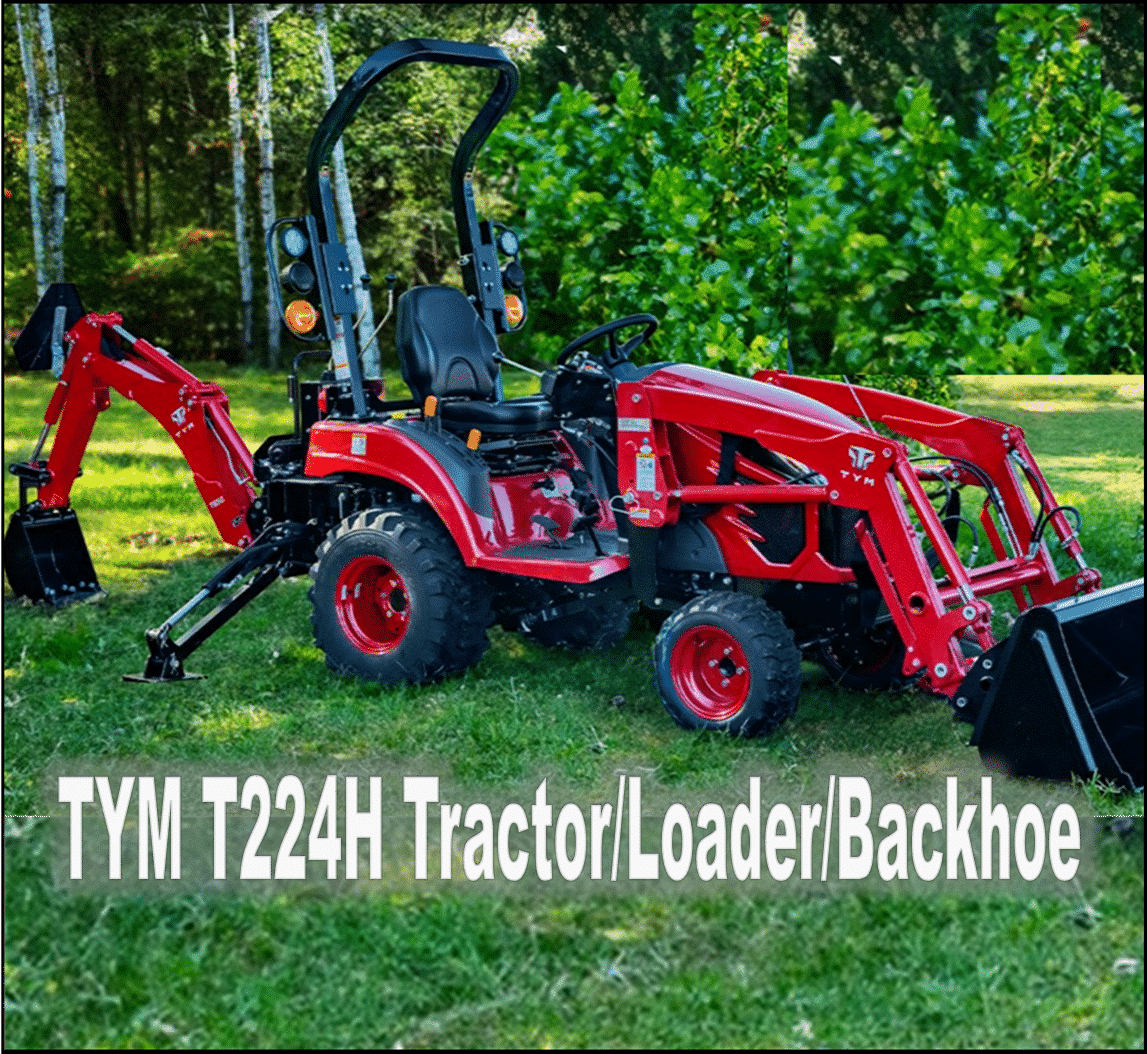

The TYM T224H Tractor/Loader/Backhoe is a Series 1, Sub-Compact Tractor with a TYM TX22h Front End Loader and a TB50 Backhoe.

The T224H is the essential TYM sub-compact, serving as an indispensable groundskeeper for every property owner. Perform the tasks of a full-size tractor while enjoying the maneuverability of a ride-on mower. Mower is available at additional cost. Call for pricing.

All the right features to get the job done!

Complete a range of jobs with a TYM sub-compact tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch and stay energized with an ergonomically design operator cabin.

Features of the TYM T224H Tractor/Loader

A Series 1, Sub-Compact Tractor

Ergonomic features for enhanced productivity
  • A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arms’ reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.
Accessible fuel tank for simpler refueling
  • Located on the right side of the driver’s seat, the fuel tank of this tractor is easy to open with an ergonomically designed twist off cap. The tank can be topped up with fuel, even when implements are connected to the tractor.
High torque, water-cooled Yanmar diesel engine
  • The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.
Foldable ROPS for storage in low-ceiling structures
  • The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.
Mid-mount linkage for mowing implements
  • The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.
Controls to speed up, slow down, raise or lower implements
  • Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
Easy to open hood for convenient maintenance
  • The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.
Hydrostatic transmission for infinitely variable drive speed
  • Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.


TYM T224H Tractor/Loader Specs

Drive System 4 Wheel Drive
Steering Hydrostatic
Clutch N/A
Brake  Wet Disc
Gross Engine Power 21.5 hp
Engine manufacturer Yanmar 3TNV74F
Type Natural Aspiration
Gross engine power 21.5 hp | 16 kW
PTO power 15.1 hp | 11.3 kW
Rated engine speed 3200 rpm
Number of cylinders 3
Displacement 60.6 cu. in.
Air cleaner Single Dry
Alternator 12V, 40A
Fuel system IDI
Transmission type HST
No. of speeds 2 Range
Max. traveling speed 8.4 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch N/A
Hydraulic System
Pump type Single Gear Pump
Implement flow 4.17 gpm
Steering flow 2.11 gpm
Total flow 6.28 gpm
Category, 3-point hitch I (N)
Hitch lift capacity 1100 lb
Hitch lift capacity at 24 inches behind link ends 679 lb
Lift control type Position
No. of standard remote valves Optional (1)
PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm
Fuel tank 6.6 gal
Coolant 3.7 qt
Crankcase 1.9 qt
Transmission/Hydraulics system 3.6 gal
Front axle 2.6 qt
Standard Tires
R3 Turf – Front Turf Master 16×7.50-8 NHS TL 4PR
R3 Turf – Rear Turf Master 24×12.00-12 NHS TL 4PR
R4 Industrial – Front WT300 18×8.5-10 NHS TL 4PR
R4 Industrial – Rear WT300 26×12.00-12 NHS TL 4PR
Dimensions & Weights
Overall length with 3-point hitch 94.2 in.
Overall width 44.5 in.
Wheelbase 53.1 in.
Height to top of ROPS 86.6 in.
Min. ground clearance 8.3 in.
Min. turn radius without brakes 86.6 in.
Weight with ROPS 1472 lb

TYM TX22h Front End Loader Specs

  • Max Lift Height: 71.3″
  • Clearance w/Bucket Dumped: 53.9″
  • Reach at Max Lift Height: 28.3
  • Max Dump Angle: 40 Degrees
  • Max Rollback Angle: 26″
  • Digging Depth: 3.9″
  • Overall Height in Carry Position: 42.0″
  • Lift Capacity to Max Height at Pivot Pin: 617#
  • Breakout Force at Ground Level, Pivot Pin: 1,235#
  • Loader Total Weight: 419#
  • Standard Bucket:  48″ Pin On
  • Joystick Mounting Point: Loader Frame

TB50 Backhoe Specs

Put the TB50 Backhoe on the T224 Tractor and you will have impressive dig depth and a wide swing angle. The TB50 offers superior functionality to help you complete your work quicker and more efficiently. Whether you need it for digging, trenching, or loading, the TB50 is optimized to complete a range of tasks from light intensity to heavy-duty.

  • Digging depth 66.5 in. (1690 mm)
  • Loading height 60.8 in. (1545 mm)
  • Max. leveling angle 10°
  • Angle of departure 21°
Capacities & Reach
  • Backhoe reach 89.7 in. (2280 mm)
  • Swing angle 140°
  • Bucket rotation 169°
  • Stabilizer spread (lowered position) 74.8 in. (1900 mm)
  • Stabilizer spread (raised position) 58.2 in. (1480 mm)
Dimensions and Weight
  • Transport overhang 38.9 in. (990 mm)
  • Transport height (max.) 60.8 in. (1545 mm)
Compatible bucket sizes

TYM’s multi-purpose buckets are capable of bulldozing, scraping, loading, metering, moving, and clamping material.

  • 9″ backhoe bucket
  • 12″ backhoe bucket
  • 16″ backhoe bucket
  • 18″ backhoe bucket

The above information is provided by TYM Tractors.
