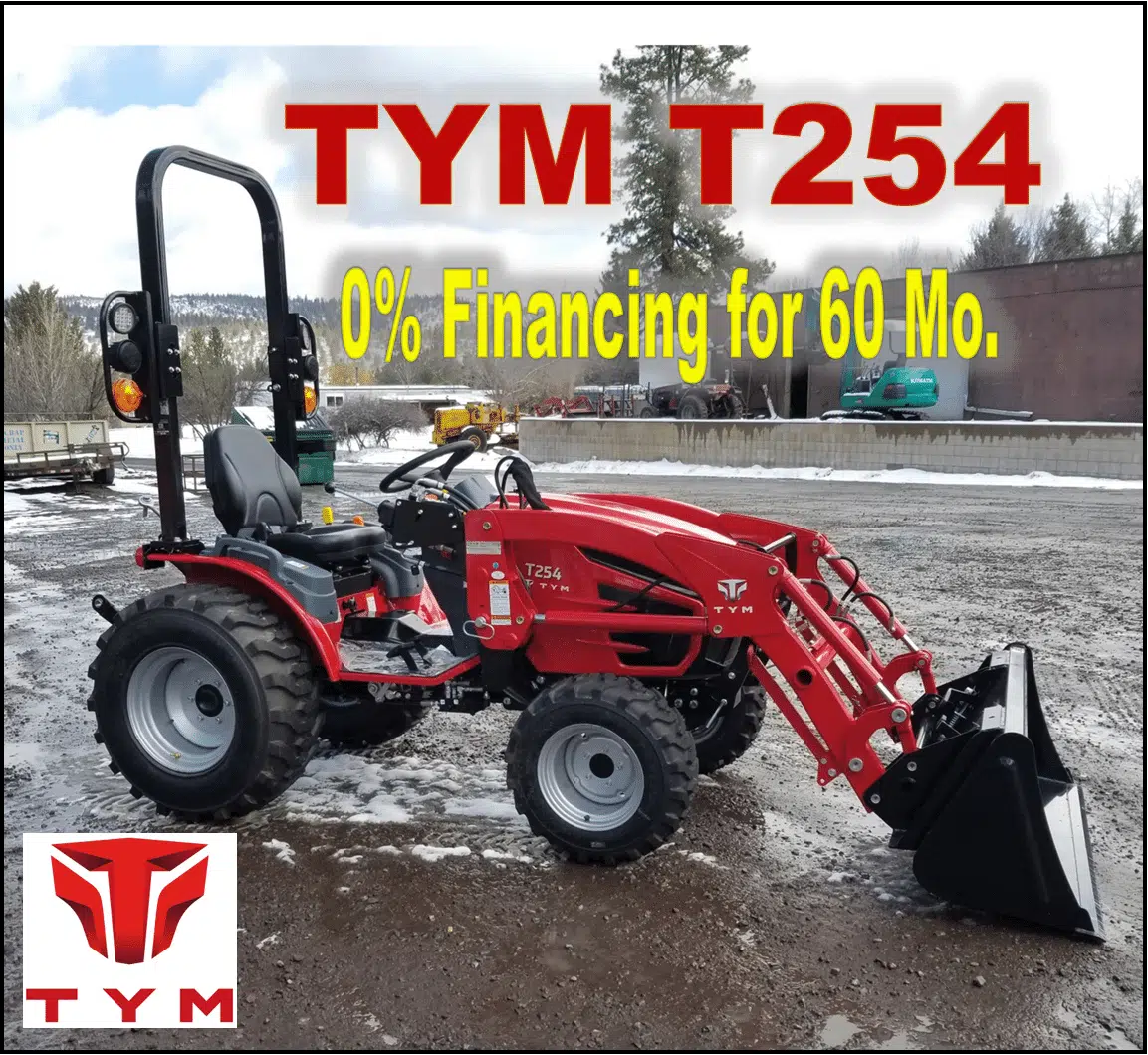

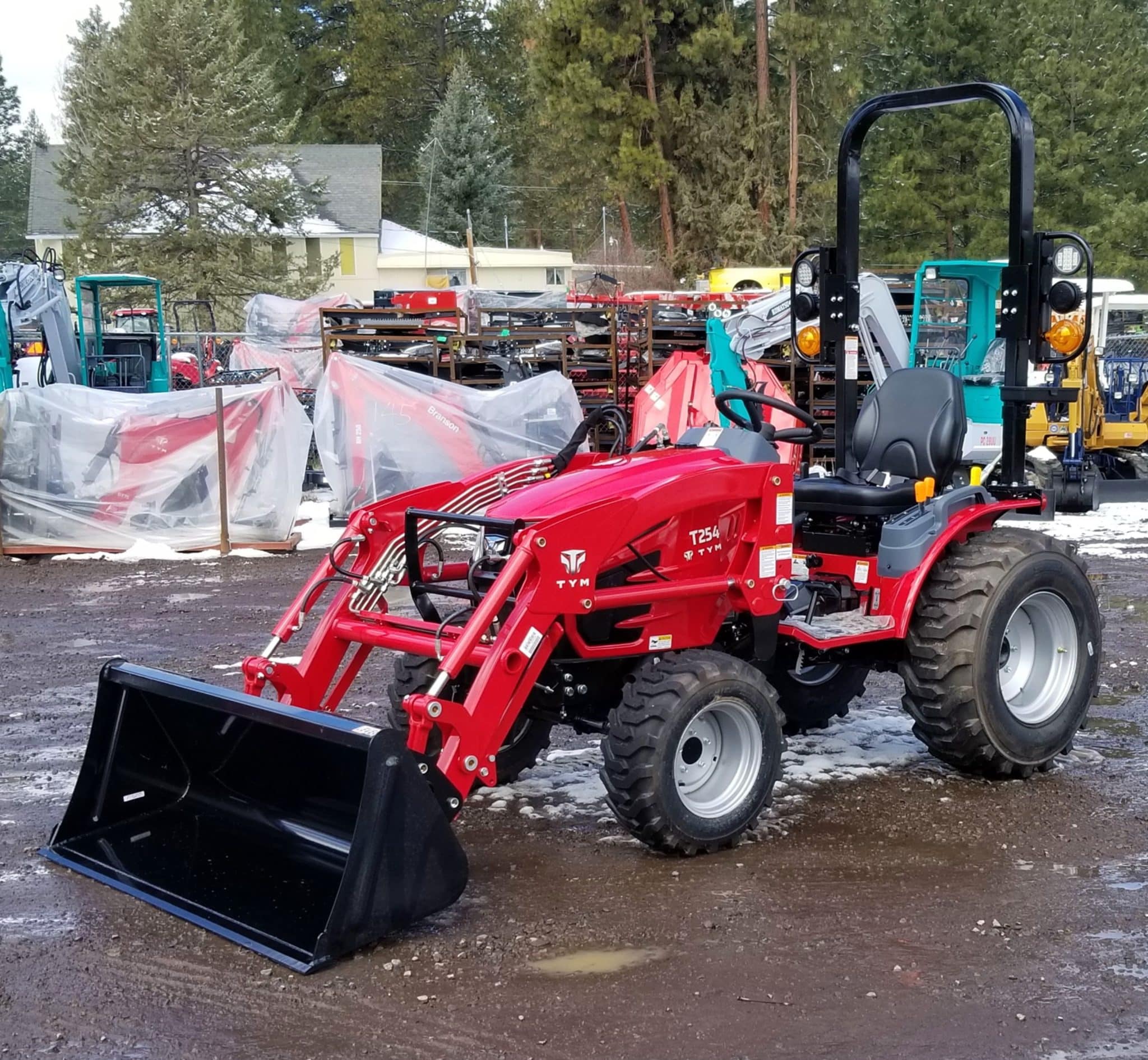

TYM T254H Tractor/Loader
The TYM T254H Tractor/Loader is built to take on more demanding tasks while maintaining the smallest frame possible, tackling routine jobs, and the occasional tougher challenges, in and around your property. Use the front loader to transport material around your property, the mid-mount mower to tend to your lawn, and a rear hitch for tow-behind implements to complete tasks like cleaning efficiently.
This Series 1 tractor is proof that good things can come in small packages. The T254 enables brings you greater power without compromising on maneuverability, backed by a powerful engine and ergonomic operator controls.
All the right features to get the job done!
Complete a range of jobs with a TYM sub-compact tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch and stay energized with an ergonomically design operator cabin.
Features – TYM T254H Tractor/Loader
Ergonomic features for enhanced productivity
- A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arms’ reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.
Mid-mount linkage for mowing implements
- The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.
High-torque, water-cooled Yanmar diesel engine
- The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.
Foldable ROPS for storage in low-ceiling structures
- The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.
2-range hydrostatic transmission for smooth operation
- Accompanied by the power steering, the responsive 2-range hydrostatic controls on this tractor ensures a smooth ride. It reduces the need for operator effort, particularly while operating the optional front-end and rear implements.
Controls to speed up, slow down, raise or lower implements
- Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
3-point hitch with powerful lift capacity
- The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive ground engagement like slashing or digging.
Hydrostatic transmission for infinitely variable drive speed
- Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.
Specs: TYM T254H Tractor/Loader
||4 Wheel Drive
||Dry Single Plate
|| Wet Disc
|Gross Engine Power
|Gross engine power
||23.9 hp | 17.8 kW
||18.8 hp | 14.0 kW
|Rated engine speed
|Number of cylinders
||77.3 cu. in.
|No. of speeds
||Infinite 2 range
|Max. traveling speed
||Dry Single Plate
||Single Gear Pump
|Category, 3-point hitch
|Hitch lift capacity
|Hitch lift capacity at 24 inches behind link ends
|Lift control type
|No. of standard remote valves
||Transmission PTO w/ORC/Independent
|R3 Turf – Front
||Turf Master 20×8.00-10 NHS TL 4PR
|R3 Turf – Rear
||Multi-Trac CS 29×12.50-15 NHS TL 4PR
|R4 Industrial – Front
||Trac Chief 20×8.00-10 NHS TL 4PR
|R4 Industrial – Rear
||Trac Chief 27×12.5-15 NHS TL 4PR
|R4 Industrial – Rear
||Trac Chief 23×8.50-12 NHS TL 4PR
|R4 Industrial – Rear
||Trac Chief 12-16.5 NHS TL 6PR
|Overall length with 3-point hitch
|Height to top of ROPS
|Min. ground clearance
|Min. turn radius with brakes
|Mid. turn radius without brakes
|Weight with ROPS
TX25P Front End Loader
- Max Lift Height: 75.3″
- Clearance w/Bucket Dumped 57.4″
- Reach at Max Lift Height 24.9″
- Max Dump Angle 38″
- Max Rollback Angle 20″
- Digging Depth 4.1″
- Overall Height in Carry Position 42.8″
- Lift Capacity to Max Height at Pivot Pin 948#
- Breakout Force at Ground Level, Pivot Pin 1,680#
- Loader Total Weight 549#
- Standard Bucket 52″ (Quick Attach)
- Joystick Mounting Point – Loader Frame
Complement the capabilities of your TYM tractor with compatible options and accessories.
| R3 Turf Tires
||F Turf Master 20×8.00-10 NHS TL 4PR, R Multi-Trac CS 29×12.50-15 NHS TL 4PR
| R4 Industrial Tires
||F Trac Chief 20×8.00-10 NHS TL 4PR, R Trac Chief 27×12.5-15 NHS TL 4PR
| R4 Lg Industrial Tires
||F Trac Chief 23×8.50-12 NHS TL 4PR, R Trac Chief 12-16.5 NHS TL 6PR
- Block heater
- Auxiliary hydraulic kit
- Front counterweights
- T65A Mechanical Thumbs
- BHPAD100 Street Pads
- Rear wiper kit for cab models
The above information is provided by TYM Tractors.
