Description

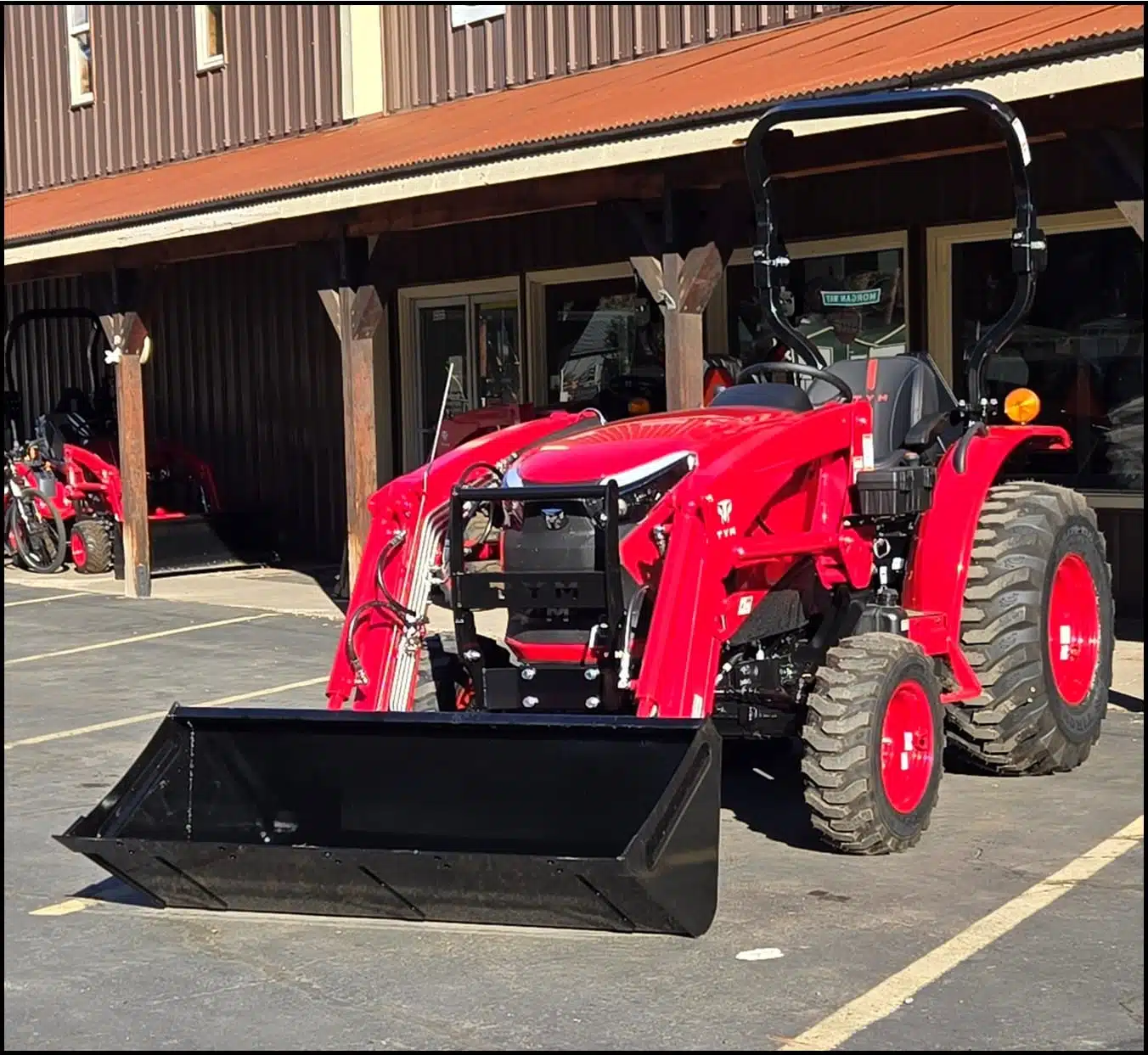

TYM T3025R Tractor/Loader
Synchro Shuttle Transmission
Information provided by the t3025c-product-brochure
TYM T3025R Tractor/Loader – a compact tractor robust enough to take on challenges of all sizes
The new TYM T3025R Tractor/Loader (essentially the 2515 tractor) is now at Keno Tractors! Call us Toll Free at 866-363-8193. This tractor will be in HIGH DEMAND so give us a call to get to the head of the line.
The TYM T3025R Tractor/Loader
Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
- Enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames.
- Achieve results faster with a powerful high-torque engine
- Control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
- Use the TYM T3025R Tractor/Loader to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
- The TYM T3025R Tractor/Loader is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
Highly economical TYM engine
- The powerful 24-horsepower TYM engine eliminates the need for regeneration, reducing maintenance costs and making servicing easier and more convenient.
The most powerful 3-point hitch lift capacity
- With the most powerful 3-point hitch lift capacity in its class, it can easily handle heavy implements and perform effortlessly in any work environment.
Cruise control
- The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.
Factory-installed joystick
- The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.
Technical specifications
ENGINE
- Engine manufacturer: TYM T1700N6
- Type: Natural aspiration
- Gross engine power: 24 hp | 18 kW
- PTO power: 21 hp | 15.7 kW
- Rated engine speed: 2100 rpm
- No. of cylinders: 3
- Displacement: 104.5 cu. in. | 1714 cc
- Air cleaner: Dry element
- Alternator: 12V, 50A
- Fuel system: Natural Asperation
- Emission Standard: Tier 4 Final
DRIVETRAIN
- Transmission type: Synchronized Shuttle
- No. of speeds: F12 / R12
- Differential Lock Engagement: Mechanical (Pedal)
- 4 WD Engagement: Mechanical (Lever)
- PTO Type: Independent
- PTO Control: Electric / Hydro
- Rear PTO Speed: 540
CAPACITIES
- Fuel tank: 8.7 gal | 33L
- Coolant: 1.3 gal / 5 L
- Crankcase: 1.5 Ga | 4.3 L
- Transmission/Hydraulics system: 8.9 gal | 37 L (Synchro)
- Front axle: 1.7 Ga / 34 L | 6.4 L
PTO
- PTO Type: Independent
- PTO Control: Electric / Hydro
- PTO Speed: 540rpm
HYDRAULIC SYSTEM
- Pump type: Dual Gear pump
- Max Total Flow: 11.5 gpm
- Implement flow: 7.5 gpm
- Steering Pump Capacity: 4.0 gpm
- 3P Cylinder Type: Mechanical
- Control Type: Fender
- Cat. I, 3-point hitch
- Hitch lift capacity: 3307 lb | 1500 kg
- Hitch lift capacity: at 24 inches behind link ends 2425 lb | 1100 kg
- Lift control type: Position
- Standard SCV Port: Front Loader : 4
- Standard SCV Port: Rear Remote: 0 (Optional, Up to 4)
DIMENSIONS & WEIGHTS
- Overall width 56.3″ / 1430mm
- Overall Length 121″ / 3071mm
- Wheelbase 65.7 in. | 1670 mm
- Height to top of ROPs: 97.2″ / 2471 mm
- Min. ground clearance: 14.4″ / 366 mm
- Min. turn radius with brakes: 98.0 / 2490mm
- Min. turn radius without brakes 124.8″ / 3170 mm
- Weight with ROP’s 2969.6# / 1347kg
BL150 Front-End Loader Attachment
The BL150 front-end loader takes advantage of the power and durability of compatible TYM compact tractors. Ideal for tasks that require more strength, these front-end loaders can help you get your tasks done more efficiently.
Dimensions & Weights
- Loader Total Weight 1008#
- Weight of Boom & Quick Attach 496#
- Weight of Mounting Frame 269#
- Lift Capacity to Max height at Pivot Pin 2200#
- Breakout Force at Ground Level Pivot Pin 3422#
- Relief Valve Setting (Loader Control Valve) 2446 psi
- Lift Cylinder 2.2X1.2″
- Bucket Cylinder 2.0X1.2″
- Attachment used for specification 62″
- Bucket Capacity 8.1 cu. ft.
Capacities & Reach
- Lift height to pivot pin: 104.9″
- Max Lift height under level bucket 96.3
- Clearance with bucket dumped 77.0″
- Reach at Maximum lift height 15.9″
- Max dump angle 55 degrees
- Reach with bucket on ground 72.7″
- Max rollback angle 35 degrees
- Digging Dept 4.7″
- Overall height in carry position 51.”
- Dept of Attachment (to back of inner shell) 20.9″
- Height of Attachment 20.9
- Length of Attachment 28.0
Cycle Times
- Boom raising time 4.4 sec
- Boom lower time 3.1 sec
- Bucket rollback time 2.6 sec
- Bucket dumping time 3.7 sec
