Description

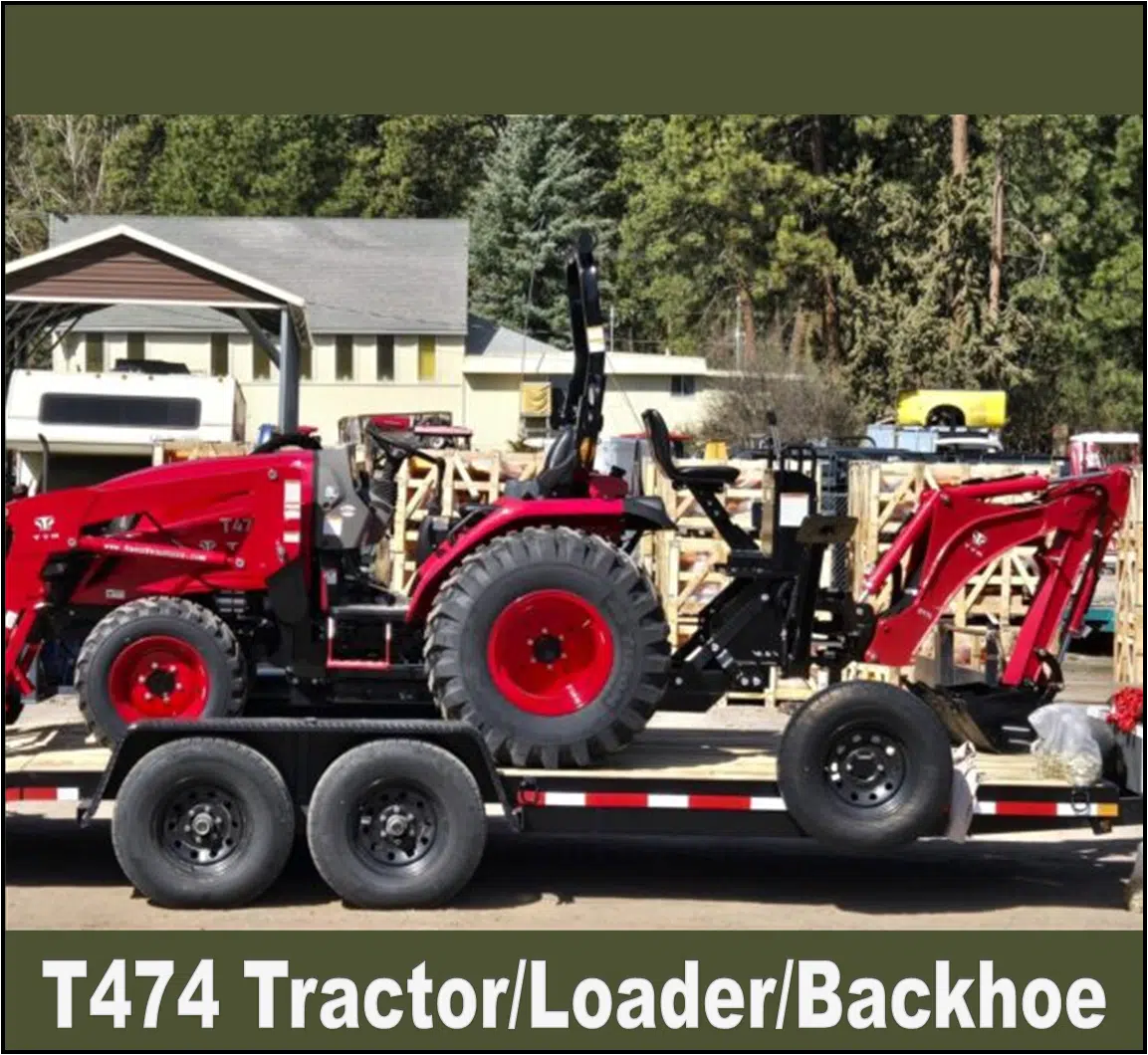

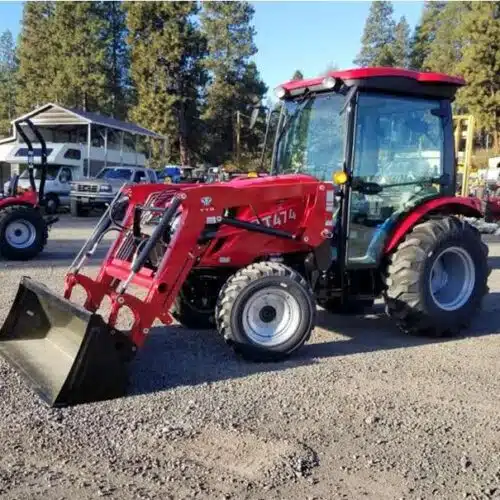

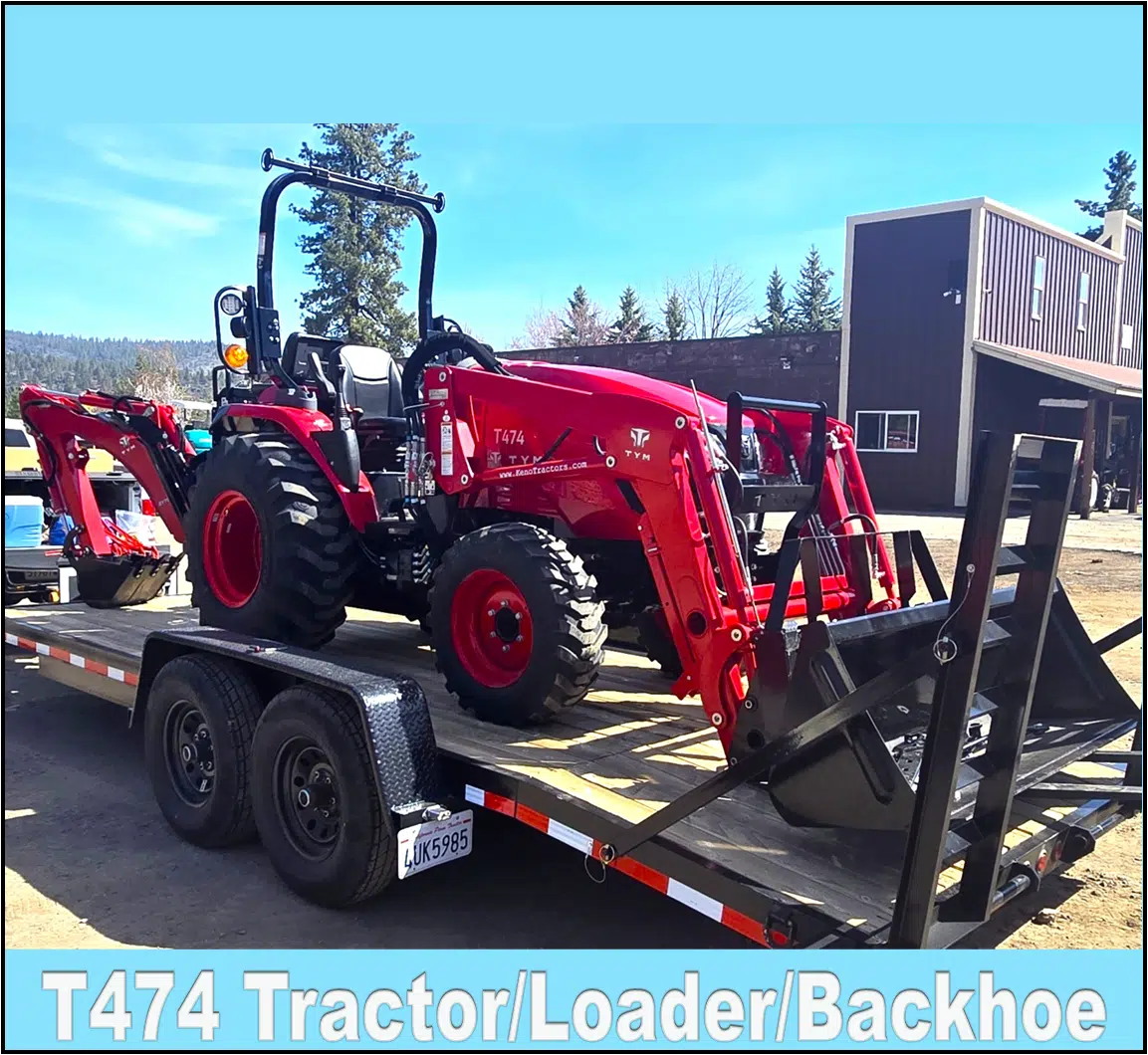

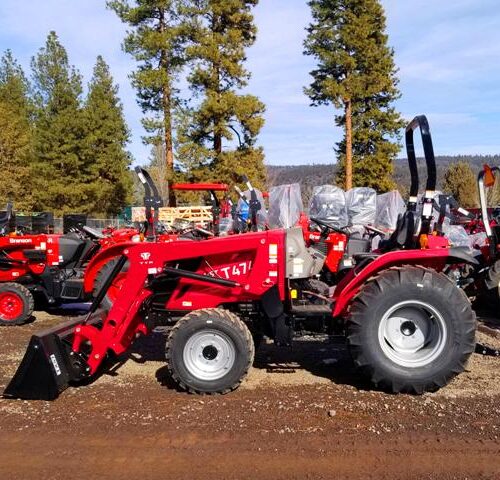

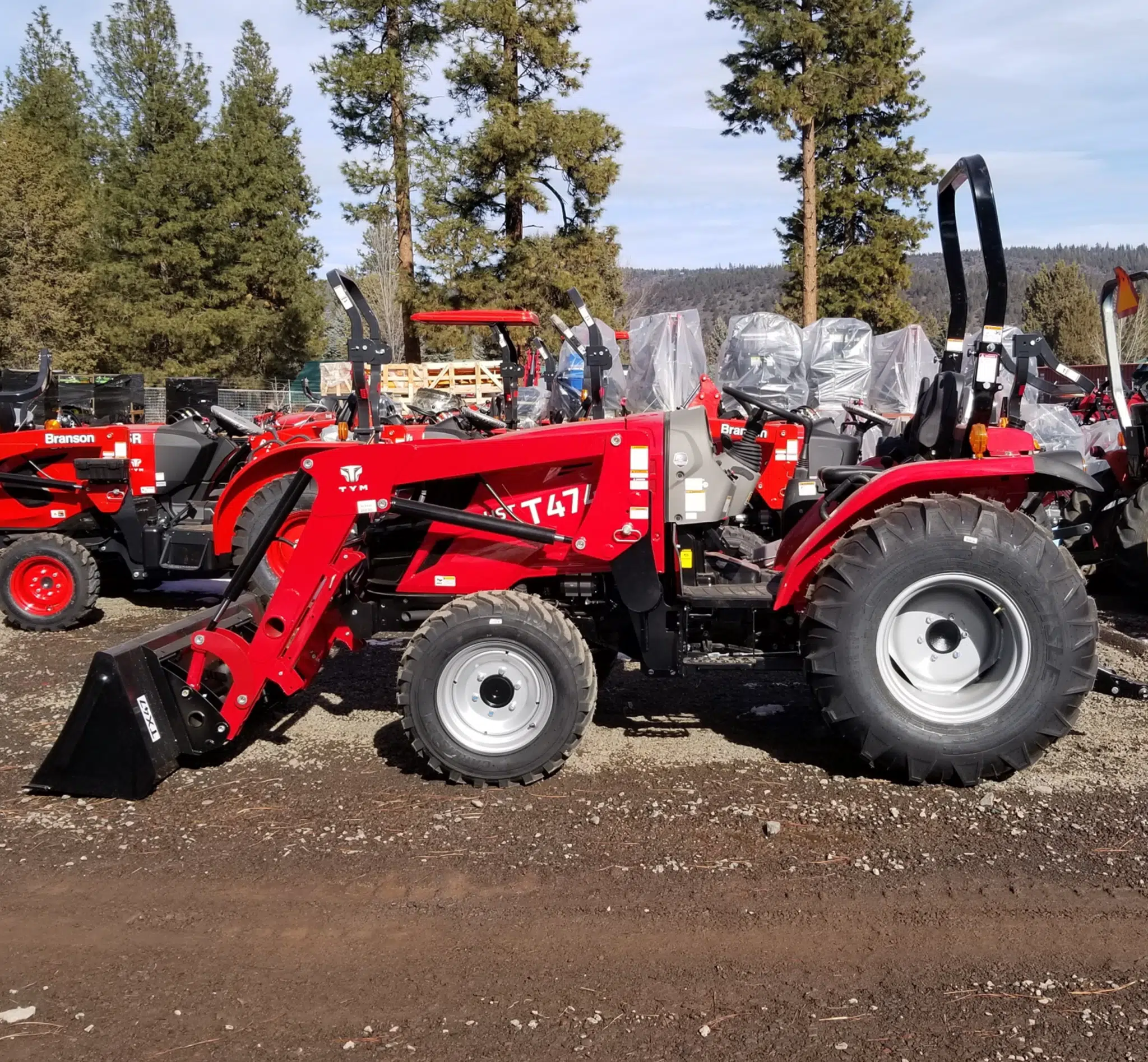

TYM T474H Tractor/Loader/Backhoe
The following Information is provided by TYM and the t474-product-brochure
The exterior of the TYM T474H Tractor/Loader demonstrates a sleek and rugged design with features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out.
Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and foldable ROPS, this tractor has the capabilities to perform light-to-medium duty jobs, all year round.
TYM BY75 Backhoe Raising the bar in material handling and productivity
The BY75 complements the power and strength of the Series 2 compact tractors, enhancing performance and versatility without compromising safety.
Powerful features to drive tractor performance
Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this compact tractor keep operators comfortable to take on challenges in warm or cold weather.
- Hydrostat (3-Range) Transmission
- 4-cylinder TYM diesel engine with high output. Equipped with a powerful, Stage V certified -cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium-duty applications efficiently and productively.
- Easy to open hood for convenient maintenance – The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.
- External lever to adjust rear implements – In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility.
- 3-point hitch with powerful lift capacity – The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.
- Controls to speed up, slow down, raise or lower implements – Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
- High capacity fuel tank to support time intensive work – The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.
TYM T474H Tractor Specs
| Drive System |
4 Wheel Drive |
| Steering |
Hydrostatic |
| Clutch |
Dry Single Plate |
| Brake |
Wet Disc |
| Gross Engine Power |
48.3 hp |
| Engine manufacturer |
TYM A2300N2 |
| Type |
Natural Aspiration |
| Gross engine power |
48.3 hp | 36 kW |
| PTO power |
31.8 hp | 26.4 kW |
| Rated engine speed |
2600 rpm |
| Number of cylinders |
4 |
| Displacement |
139.5 cu. in. |
| Air cleaner |
Duel Dry |
| Alternator |
12V, 70A |
| Fuel system |
IDI |
| Transmission type |
3-Range Hydrostat |
|
|
| Max. traveling speed |
18.4 mph |
| Brakes |
Wet Disc |
| Steering |
Hydrostatic |
| Clutch |
|
| Pump type |
Dual Gear Pump |
| Implement flow |
7.7 gpm |
| Steering flow |
4.3 gpm |
| Total flow |
11.91 gpm |
| Category, 3-point hitch |
I |
| Hitch lift capacity |
2646 lb |
| Hitch lift capacity at 24 inches behind link ends |
1764 lb |
| Lift control type |
Position |
| No. of standard remote valves |
1 |
| PTO type |
Independent |
| PTO control |
Electric/Hydro |
| PTO rear |
540 rpm |
| Fuel tank |
9.0 gal |
| Coolant |
6.9 qt |
| Crankcase |
6.8 qt |
| Transmission/Hydraulics system |
9.3 gal |
| Front axle |
8.7 qt |
| Overall length with 3-point hitch |
131 in. |
| Overall width |
54.5 in. |
| Wheelbase |
68.9 in. |
| Height to top of ROPS |
94.5 in. |
| Min. ground clearance |
12.8 in. |
| Minimum turn radius with brakes |
106.7 in. |
| Min. turn radius without brakes |
117.5 in. |
| Weight with ROPS |
3333 lb |
|
|
TX47Front-End Loader Specs
The TX47 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX47 front-end loader can help you get your tasks done more efficiently.
Capacities & Lift
- Lift height: 105.6 in. (2683 mm)
- Max. lift height under level bucket: 96.5 in. (2450 mm)
- Clearance with bucket dumped: 80.4 in. (2042 mm)
- Reach at maximum lift height: 15 in. (380 mm)
- Max. dump angle: 52°
- Reach with bucket on ground: 70.7 in. (1795 mm)
- Max. rollback angle: 35°
- Digging depth: 10 in. (255 mm)
- Lift capacity: 2152 lb (976.2 kgf)
- Breakout force at ground level, pivot points: 3198 lb (1450.8 kgf)
- Bucket rollback force at ground line: 3012 lb (1366.1 kgf)
- Bucket capacity: 9.9 cu. ft (0.28 cu. m)
- Compatible Bucket Sizes: 66″ Front End Loader Bucket
Dimensions and Widths
- Overall height in carry position: 55.5 in. (1409 mm)
- Depth of Attachment (to the back of the inner shell): 19.4 in. (492 mm)
- Height of Attachment: 21.9 in. (556 mm)
- Length of Attachment (to pivot point): 25.5 in. (647 mm)
- Weight of boom & quick attach mechanism (1): 513.7 lb (233 kg)
- Weight of mounting frame (2): 277.8 lb (126 kg)
- Weight of bucket (3): 229.3 lb (104 kg)
- Loader total weight (1+2+3): 1020.7 lb (463 kg)
- Lift cylinder 2.2×1.2 in. (55×30 m)
- Bucket cylinder: 2.0×1.2 in. (50×30 m)
- Attachment used for specification: 66 in. (1675 mm)
Cycle Times
- Boom raising time 5.4 sec
- Boom lowering time 3.8 sec
- Bucket rollback time 2.5 sec
- Bucket dumping time 4.0 sec

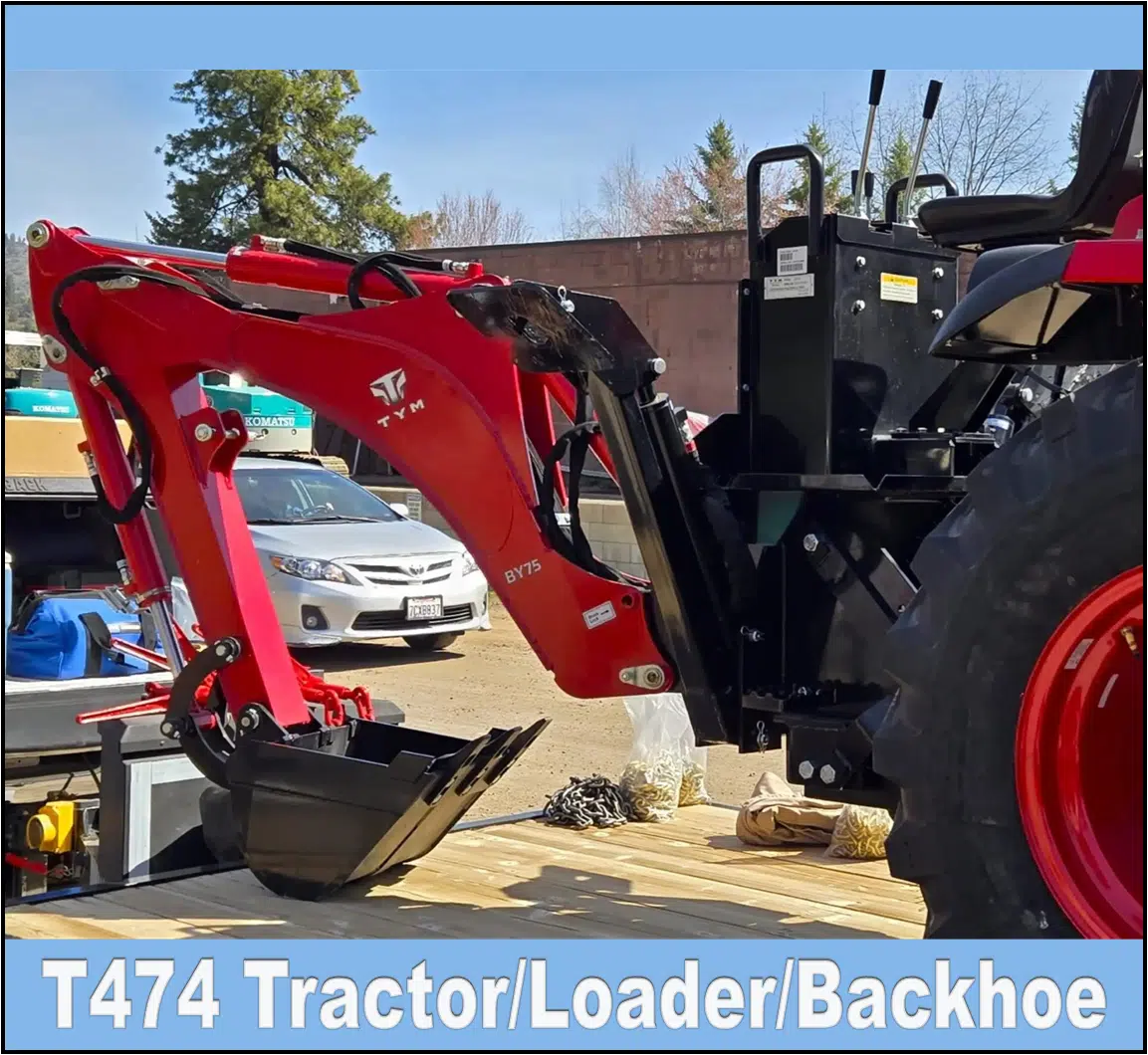

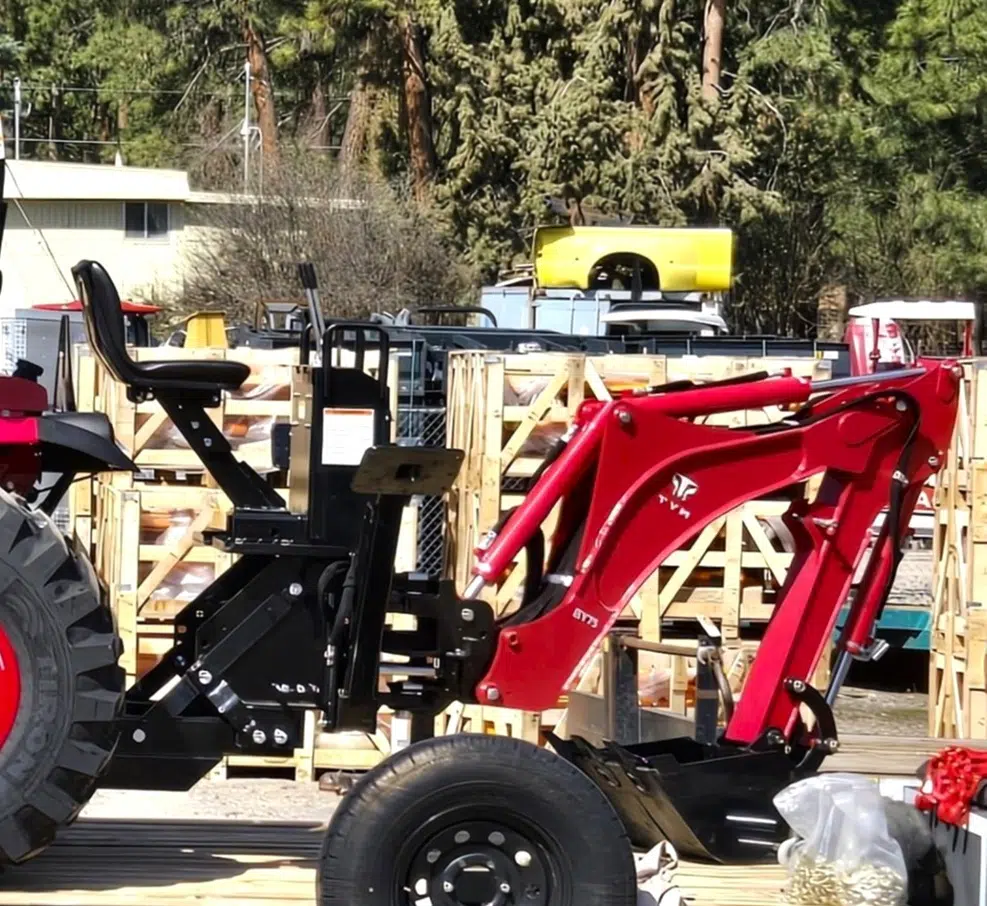

BY75Backhoe Specs
The BY75 complements the power and strength of the Series 2 compact tractors, enhancing performance and versatility without compromising safety.
- Digging depth 91.2 in. / 2317 mm
- Loading height 90 in. / 2286 mm
- Backhoe reach 123.6 in. / 3140 mm
Complement the capabilities of your TYM tractor with compatible accessories.
Accessories
- Block heater
- 7-pin trailer socket
- Mid-PTO kit
- Auxiliary hydraulic kit
- T85A Mechanical Thumb
- Double rear remote w/ detent
- Front counterweights
- BHPAD200 Street Pads
