TYM T574HC Cab Tractor/Loader

Home/New Tractors, Tractors, TYM Tractors/TYM T574HC Cab Tractor/Loader
Print Product Info

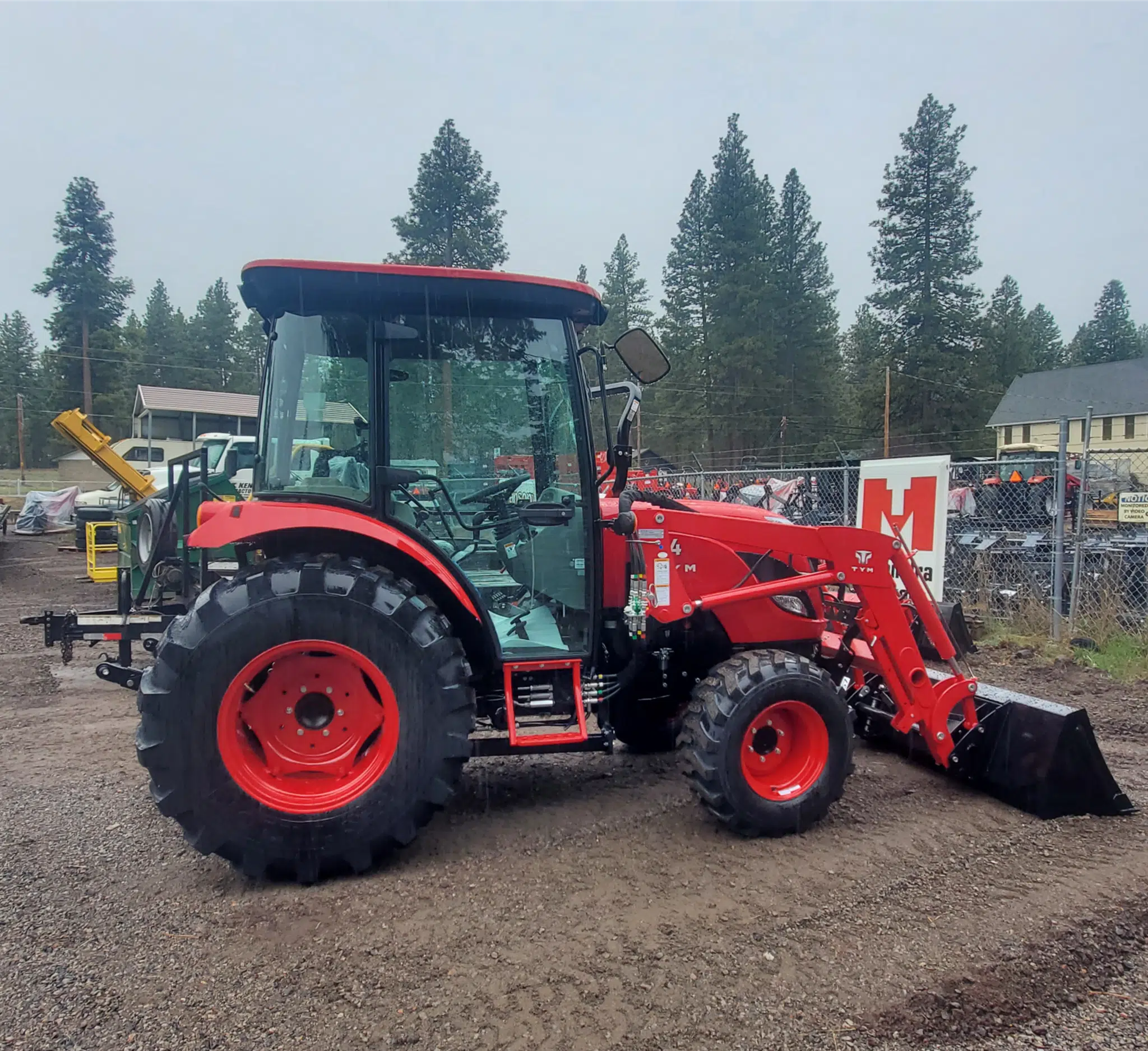

TYM T574HC Cab Tractor/Loader

$38,400.00

TYM T574HC Cab Tractor/Loader

  • All Weather Cabin with Heat and AC
  • 55 hp Diesel Engine (Tier-4 certified 4-cylinder engine)
  • 3-range Hydrostat Transmission
  • 4 WD
  • Differential lock
  • Adjustable Suspension Seat
  • Front and Rear Wipers
  • In- Cab Rear Mirror
  • Radio with Bluetooth
  • 12 V Charging Ports
  • Selectable mid/rear PTO
  • Selectable 4WD
  • Automatic Throttle Control
  • Selectable rear PTO
  • One-touch PTO switch
  • Mid-mount PTO available at additional cost
  • 540/750/1000 rpm PTO selection
  • External 3-point hitch position control
  • Draft control
  • Two sets of rear auxiliary valves
  • Telescoping stabilizers
  • Extendable lower links
  • Hitch lift capacity 3822#

Description

TYM T574HC Cab Tractor/Loader

**The following information provided by TYM Tractors**

Introduction to the TYM T574HC Cab Tractor/Loader

Ideal for larger hobby farms and chore tractors for operators who need a tractor that is comfortable all day long.

Take on tough jobs in tight spaces, balancing high power output with maximized maneuverability.

  • The T575 engine is Turbocharged, making it ideal for higher altitudes and where additional horsepower is needed without additional size.
  • With Powerful Lift capabilities in a compact body, and is able to perform tasks within the narrow spaces between garden beds.
  • Engineered with telescopic links and stabilizers at the hitch, this tractor is built to attach and swap out rear implements of all sizes quickly and effectively
  • An external lever near the 3-point hitch further enables quicker implement changes, with the option to adjust the implement as soon as it is connected. This functionality allows
    operators to shift between tasks easily and work dynamically.
  • The premium cabin includes modern amenities to enable productivity and comfort for operators, from finer details like Bluetooth-enabled speakers and charging ports to more robust installations like full A/C and heating and cushioned seating.
TELESCOPIC LINKAGES AND STABILIZERS

Telescopic linkages allow implements to be easily connected and swapped out, without needing input from the operator cabin. Stabilizers make it possible for the tractor to adapt to implements of varying loads, without putting too much pressure on the engine productivity.

4-CYLINDER TYM DIESEL ENGINE WITH HIGH OUTPUT

Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively.

SUPERIOR OPERATOR AMENTITIES FOR GREATER PRODUCTIVITY

Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a Bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected and alert during every job.

DURABLE POWER STEERING AND AXLE CONFIGURATION

The heavy duty 4WD front axle allows the tractor to lift heavy loads and tow large implements. Powerful hydraulics support the power steering system, which benefits from a dual action mechanism using a hydraulic cylinder and tandem type hydraulic pump.

3RD. FUNCTION HYDRAULIC VALVE TO ENHANCE IMPLEMENT CAPABILITIES (available at additional cost)

Allowing for versatile implement handling, this tractor has a 3rd function installation kit available at additional cost. It can maximize the use of a bucket implement with 4-in-1 functionality, including lifting, tilting, dumping and grappling.

EASY MANINTENANGE AND SERVICE

The hood of the tractor can be easily opened, allowing quick access to the engine and other systems for daily checks, routine service and maintenance. These help increase the durability of the tractor.



SPECIFICATIONS T574C

ENGINE
  • Engine manufacturer TYM Kukje A2300T3
  • Type 4-Cyl, Turbocharged
  • Gross engine power 55 hp | 41 kW
  • PTO power 42.6 hp | 31.8 kW
  • Rated engine speed 2600 rpm
  • No. of cylinders 4
  • Displacement 139.5 cu. in.
  • Air cleaner Dual Dry
  • Alternator 12V, 70A
  • Fuel system Indirect Injection
POWERTRAIN
  • Transmission type 3-Range Hydrostat
  • Max. traveling speed 15.1 mph
  • Brakes Wet Disc
  • Steering Hydrostatic
  • Clutch N/A
HYDRAULIC SYSTEM
  • Pump type Dual Gear Pump
  • Implement flow 7.7 gpm
  • Steering flow 4.25 gpm
  • Total flow 11.91 gpm
HITCH
  • Category 1, 3-point hitch
  • Hitch lift capacity @ end 3820 lb
  • Hitch lift capacity at 24 inches behind link ends 3051 lb
  • Lift control type Position w/Ext. Lever, Draft
  • No. of standard remote valves 2 Standard
PTO
  • PTO type Independent
  • PTO control Electric/Hydro
  • PTO rear 540 rpm
CAPACITIES
  • Fuel tank 17.0 gal
  • Coolant 6.9 qt
  • Crankcase 6.8 qt
  • Transmission/Hydraulics system 9.2 gal
  • Front axle 10.5 qt
DIMENSIONS & WEIGHTS
  • Overall length with 3-point hitch 141.3 in.
  • Overall width 63.8 in.
  • Wheelbase 76.2 in.
  • Height to top of ROPS 102.1 in.
  • Height to Cabin Roof 99.6 in.
  • Min. ground clearance 13.8 in.
  • Min. turn radius with brakes 121.2 in.
  • Min. turn radius without brakes 131.5 in
  • Weight with ROPS 3887 lb
  • Weight with cab 4233 lb
STANDARD TIRES
  • R1 Agricultural – Front Farm Specialist 9.5-16 NHS TL 6PR
  • R1 Agricultural – Rear Farm Specialist 14.9-24 NHS TL 6PR
  • R3 Turf – Front Multi-Trac CS 27×10.50-15 NHS TL 4PR
  • R3 Turf – Rear Multi-Trac CS 44×18.00-20 NHS TL 4PR
  • R4 Industrial – Front Trac Chief 12-16.5 NHS TL 6PR
  • R4 Industrial – Rear Xtra Grip 16.9-24 NHS TL 6PR
UPGRADES FOR THE T574 Tractor

Complement the capabilities of your TYM tractor with compatible options and accessories

Tire Options
  • Tire R1 Agricultural Tires F Farm Specialist 9.5-16 NHS TL 6PR R Farm Specialist 14.9-24 NHS TL 6PR
  • Tire R3 Turf Tires F Multi-Trac CS 27×10.50-15 NHS TL 4PR R Multi-Trac CS 44×18.00-20 NHS TL 4PR
  • Tire R4 Industrial Tires F Trac Chief 12-16.5 NHS TL 6PR R Xtra Grip 16.9-24 NHS TL 6PR
Accessories available at additional cost
  • Block heater
  • Mid-PTO kit (HST Models)
  • T85A Mechanical Thumb
  • Front counterweights
  • BHPAD200 Street Pads

Compatible TYM Attachments

TX57 TYM Front End Loader
  • Lift height 109.4 in.
  • Lift capacity 2790 lb
  • Bucket capacity 11.3 cu. ft
BY85 TYM Backhoe (available at additional cost)
  • Digging depth 103.2 in.
  • Loading height 92.4 in.
  • Backhoe reach 134.4 in.
